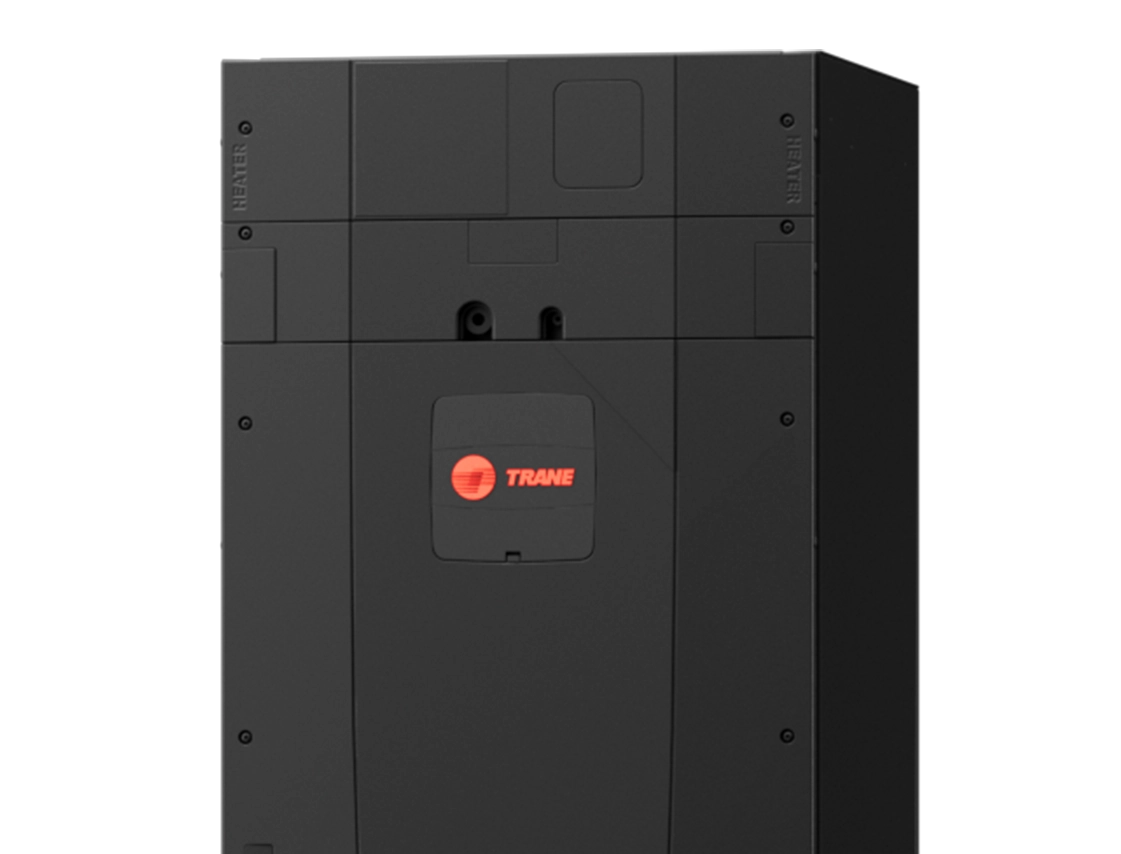

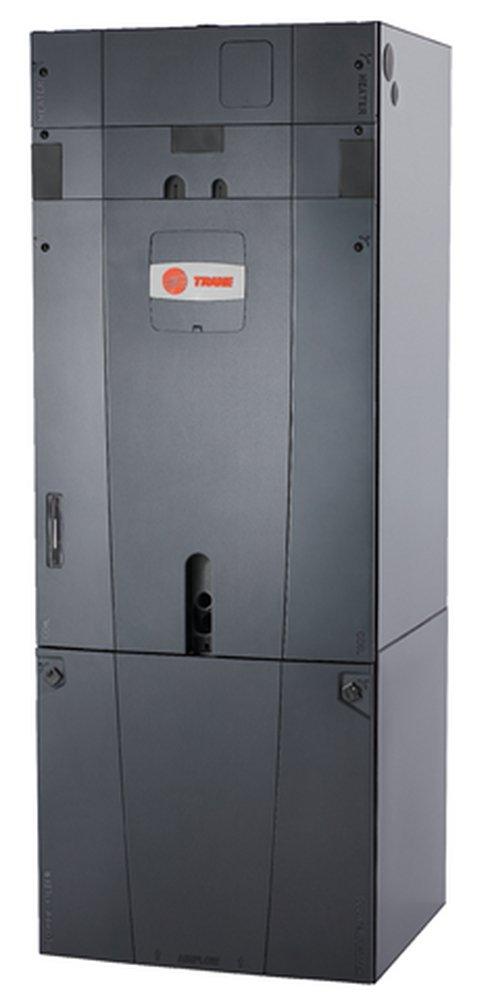

Trane TAMXB0C42V41DA Hyperion™ TAMX 3.5 Ton Air Handler

Product Description

The TRANE TAMXB0C42V41DA Hyperion™ TAMX air handler features Trane Link® communicating technology, which allows for more in-depth performance information and alert code notifications. The fully enclosed and double-wall cabinet virtually eliminates sweating and condensation, improving indoor air quality. It also features a variable-speed Vortica™ blower motor that uses less energy than conventional blowers while reducing carbon emissions and noise.

• Trane Link communicating technology
• Fully enclosed and double-wall cabinet
• Variable speed blower motor

Product Highlights

This air handler delivers the comfort you need, exactly when you need it with its variable speed blower motor and state-of-the-art variable speed technology.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: TAMXB0C42V41DA

Technical Specifications

• A2L Compatible: No
• BTU: 42000
• BTU Cooling Rating: 42000 Btu/h
• Blower Type: Vortica
• Coil Type: Cased
• Collection: Hyperion TAMX
• Communicating: Yes
• Configuration: Multi-Position
• Depth: 21-4/5
• Fan Speeds: Variable
• Height: 56-9/10
• Liquid Line (OD): 3/8
• MBH: 42
• Material: Aluminum
• Phase: 1 ph
• Power Source: Electric
• Refrigerant: R-410A
• Refrigeration Control Type: EEV
• Suction Line (OD): 7/8
• Tonnage: 3.5 Ton
• Volts: 200/230V
• Width: 23-1/2
• Fan Stages: Variable
• Airflow Capacity: 4 Nominal Tonnage (cfm/Ton)
• Airflow Configuration: Multi-positional 4-Way
• Airflow Type: High Efficiency
• BTU Rating: 42,000 Btu/hr
• CFM Rating: 1,400 cfm
• Cabinet Size(W x D): 23.5 x 21.8
• Coil Face Area (Sq-Ft): 5.04
• Coil Rows: 4
• CoilDesign: Plate Fin
• Connection Type: Brazed
• Convertability: Multi-Position
• CoolingCapacity: 42,000 BTU
• Drain Connection Size (In): 3/4 NPT
• Drive Type: Direct - Variable
• Duct Size (In): 20.5 X 14.35
• ElecHertz: 60
• ElecPhases: 1
• ElecVolts: 200-230
• Energy Star Rated: N
• FPI: 14
• Fan Diameter (In): 11
• Fan Motor FLA: 3 - 4.1
• Fan Type: Centrifugal
• Filter Furnished: No
• Filter Size (In): 22 x 20 x 1
• Filter Type: Throwaway
• FilterSize: 22 x 20 x 1
• Flow Control: EEV
• Footprint Depth: 21.8
• Footprint Width: 23.5
• Frequency Rating: 60 Hz
• Full Load Amperage (FLA): 3 - 4.1
• Line Size Gas: 7/8
• Line Size Liquid: 3/8
• MCA: 5
• MOP: 15
• Model: TAMX
• Motor Type: ECM
• Number of Stages: Variable
• Refrigerant Control: EEV
• Refrigerant Type: R-410A
• Series: Link Communicating
• Voltage Rating: 208/230 V
