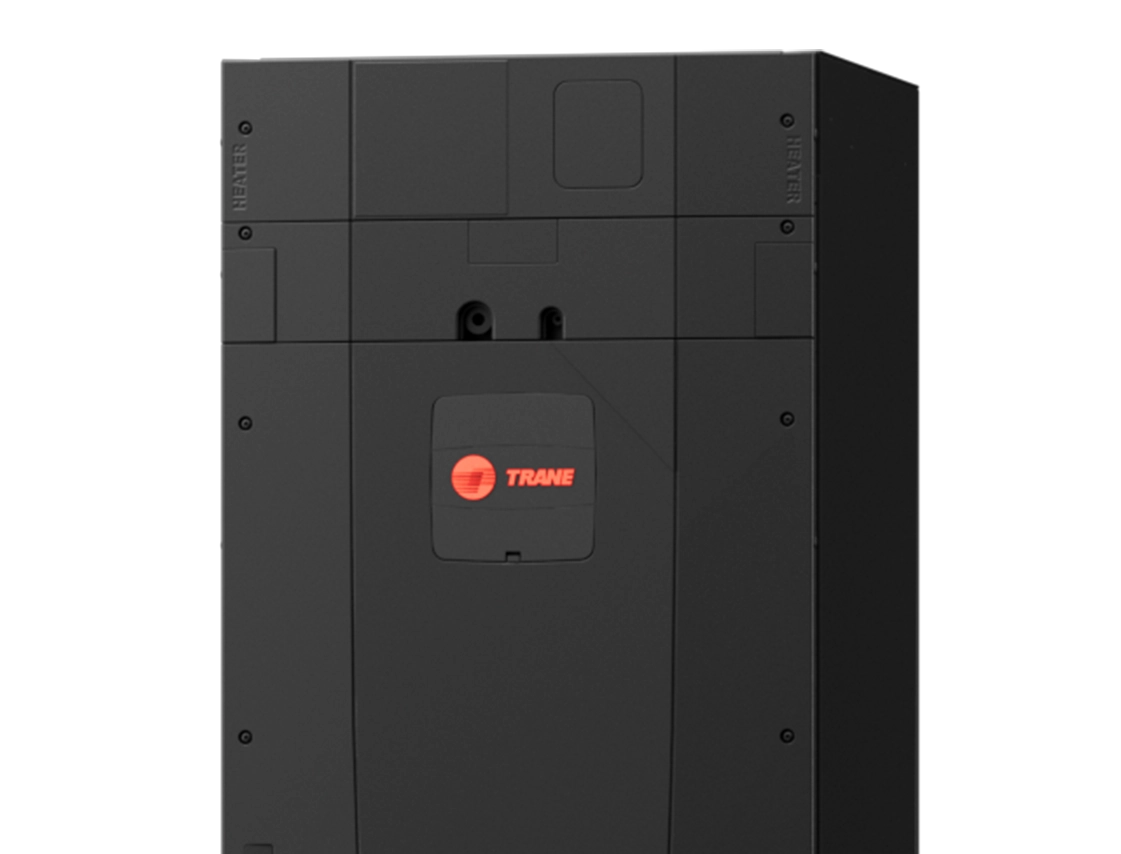

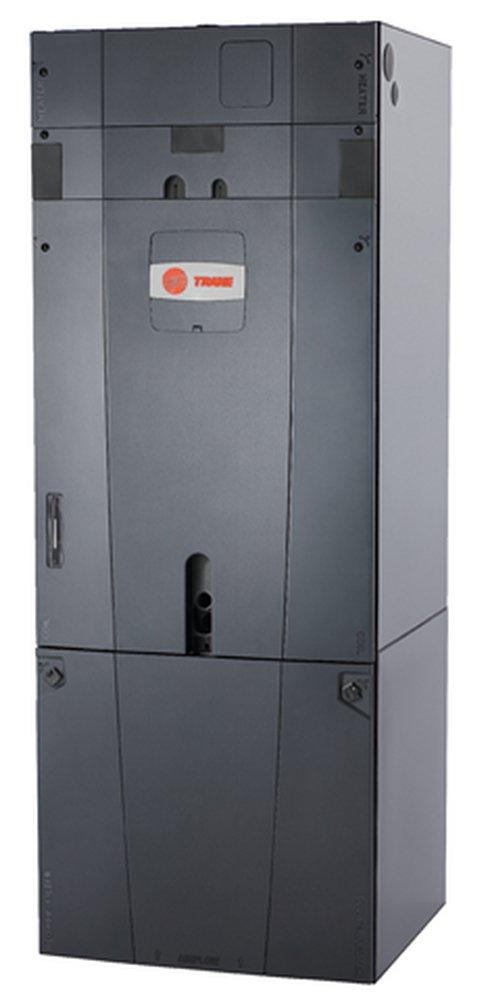

Trane TAMXB0C36V31DA Hyperion TAMX 3 Ton Convertible Variable Speed Air Handler

Product Description

The TRANE TAMXB0C36V31DA air handler features Trane Link communicating technology, which allows for more in-depth performance information and alert code notifications. The air handler features a fully enclosed and double-wall cabinet that virtually eliminates sweating and condensation, improving indoor air quality. It also features a variable-speed Vortica blower motor that uses less energy than conventional blowers while reducing carbon emissions and noise.

• Trane Link communicating technology
• Fully enclosed and double-wall cabinet
• Variable speed blower motor

Product Highlights

This TRANE air handler delivers the comfort you need, exactly when you need it. It features variable speed technology and a variable-speed Vortica blower motor.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: TAMXB0C36V31DA

Technical Specifications

• Manufacturer: Trane
• Model #: TAMXB0C36V31DA
• Communicating: Yes
• Fan Stages: Variable
• Height (IN.): 56.9"
• Width (IN.): 23.5"
• Depth (IN.): 21.8"
• Compatible Refrigerant: R-410A
• A2L Compatible: No
• BTU: 36000
• BTU Cooling Rating: 36000 Btu/h
• Blower Type: Variable Speed
• Coil Type: Cased
• Collection: Hyperion TAMX
• Configuration: Convertible
• Fan Speeds: Variable
• Liquid Line (OD): 3/8
• MBH: 36
• Material: Aluminum
• Phase: Single Phase
• Power Source: Electric
• Refrigerant: R-410A
• Refrigeration Control Type: EEV
• Suction Line (OD): 7/8
• Tonnage: 2 - 3.5 Ton
• Volts: 200/230V
• CFM Rating: 1,200 cfm
• Frequency Rating: 60 Hz
• Model: TAMX
• Motor Type: ECM
• Number of Stages: Variable
• Voltage Rating: 208/230 V
