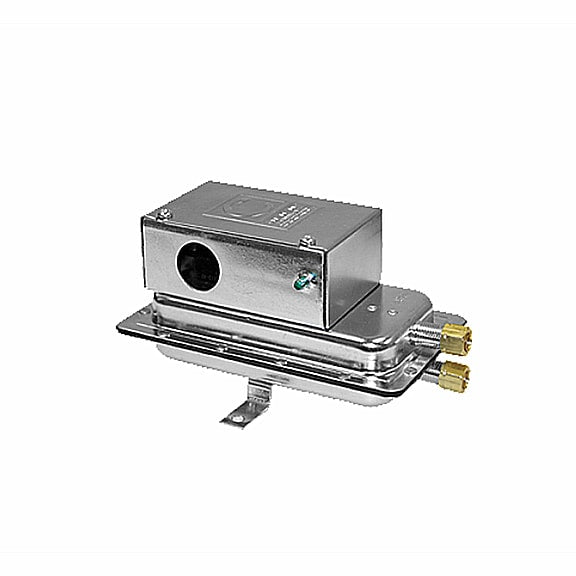

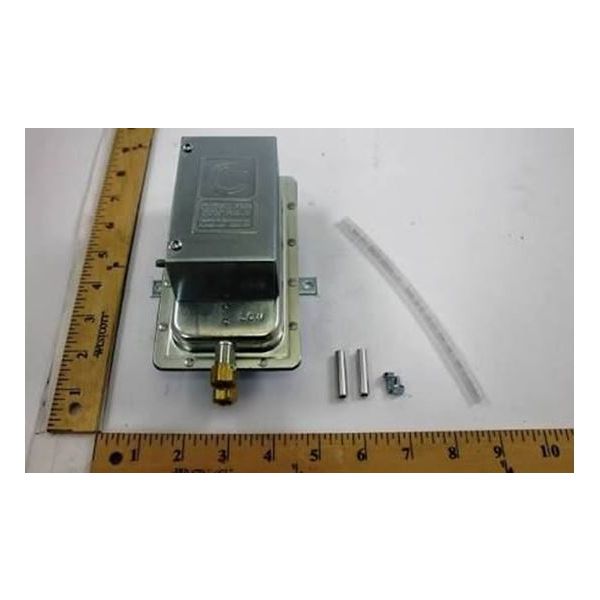

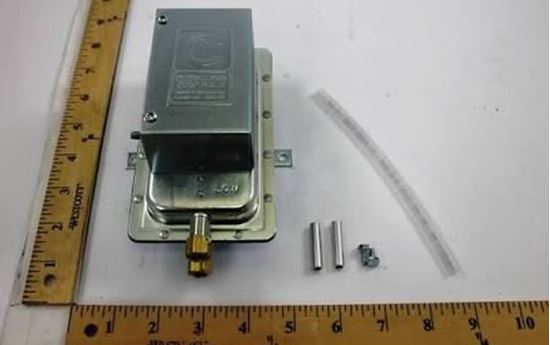

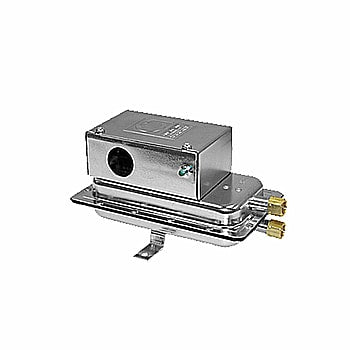

Trane SWT3405 Air Pressure Sensing Switch Adj

Product Description

The Trane SWT3405 is an air pressure sensing switch used in HVAC systems. This component works within refrigerant circuits to maintain optimal cooling capacity. The switch regulates air pressure by controlling superheat and adjusting refrigerant flow, preventing issues like evaporator coil freeze-up.

• Contact Arrangement: 1 Normally Open, 1 Normally Closed
• NEMA 1 Enclosure Type
• Suitable for Inert Dry Air Media

Product Highlights

This device ensures efficient temperature management and operational reliability in HVAC settings.

Product Information

Standard Information

• Brand: Trane
• MPN: SWT3405

Technical Specifications

• Contact Configuration: SPDT
• Current: 15 A
• Enclosure Type: NEMA 1
• Frequency: 60 Hz
• Function: Snap
• Material: Silicone
• Mounting Type: Vertical
• Number of Poles: 1
• Pressure: 0.05 to 12 In-Wc Operating, 13.85 In-Wc Max
• Voltage: 24VAC
• Temperature Range: -40°F to 180°F
• Terminal Type: Screw
• Dimensions: Length - 6.13 inches, Height - 3.56 inches, Width - 4 inches
• Weight: 1.4 lbs
