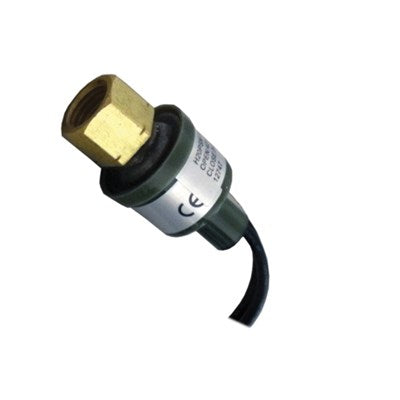

TRANE SWT03737 Low Pressure Switch

Product Description

The TRANE SWT03737 is a low pressure switch that monitors pressure levels in HVAC systems. This switch activates or deactivates equipment based on set pressure points, ensuring optimal system performance. The cut-in pressure is twenty-five psi, while the cut-out pressure is forty-five psi. It connects to control circuits to signal when adjustments are necessary.

• Monitors pressure in HVAC systems.
• Cut-in pressure at twenty-five psi and cut-out pressure at forty-five psi.
• Constructed with a stainless steel disc and SPST contact configuration.

Product Highlights

This switch plays a vital role in maintaining the efficiency of HVAC systems by managing pressure levels effectively.

Product Information

Standard Information

• Manufacturer: Trane
• Part Number: SWT03737

Technical Specifications

• Mounting Type: Direct
• Temperature Rating: -22 to 185 Deg. F
• Type: Cartridge Control, Low, Small Disc
• Voltage (VAC): 250V
• Material: Stainless Steel Disc
• Standards: CE,TUV,UL,VDE
• Terminal Type: Lead Wire
• Power Rating: 120/240VAC - 8.0 FLA 48 LRA, 375 VA at 120/277VAC,125 VA at 24VAC, 28 VDC - 2A
• Contact Configuration: SPST
• Current Rating: 8A
• Contact Arrangement: NO
• Enclosure Type: IP65
• Function: Low
• Number of Poles: 1
• Pressure Rating: -0.5 to 45 Bar Operating, 300 Bar Burst, 25 Open, 45 Close
• Quantity/Package: 20
• Height: 3 inches
• Length: 5.5 inches
• Width: 4.9 inches
