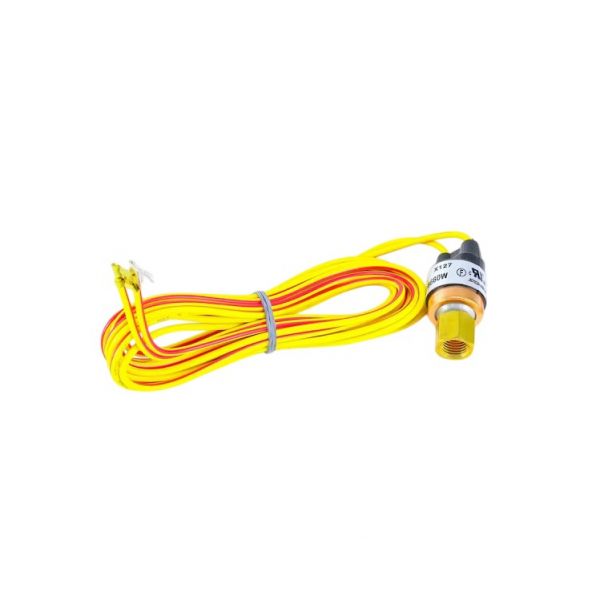

Trane SWT03025 Switch, High Pressure; Spst Opens @ 650 Deg

Product Description

The TRANE SWT03025 is a high-pressure switch with SPST functionality, designed to open at 650 degrees. This switch is suitable for use with 4TWA3030A3000BA, 4TWA3030A4000BA, 4A6C3030A3000AA, 4TTA3036A4000BA, 4A6H3030A1000AA furnaces. It features a stainless steel housing and IP65 enclosure for durability.

• Opens at 650 degrees
• SPST (single pole, single throw) switch type
• Features a stainless steel housing with IP65 enclosure

Product Highlights

This high-pressure switch is designed for durability and reliable performance in demanding environments.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: SWT03025
• Country of Origin: United States

Technical Specifications

• Amperage Rating: 8 A
• Enclosure Type: IP65
• Housing Material: Stainless Steel
• Maximum Pressure: 300 bar
• Mounting Type: Direct
• Pressure Rating: -0.5 to 45 bar
• Switch Type: SPST
• Temperature Rating: -22 to 185 deg F
• Voltage Rating: 250 V
• Additional Information: 22.6 mm Diameter, 1.95 mm Actual Length/Depth, 1-Pole, Lead Wire Terminal Type
• Brand: Trane
• SKU: SWT03025
• Manufacturer: Trane
• Part Number: SWT03025
• Condition: New
• Availability: Factory Order
• Product Type: Heat Pump, Air Handler, Central Air Conditioner
• MPN: SWT3025
• UPC: Does Not Apply
