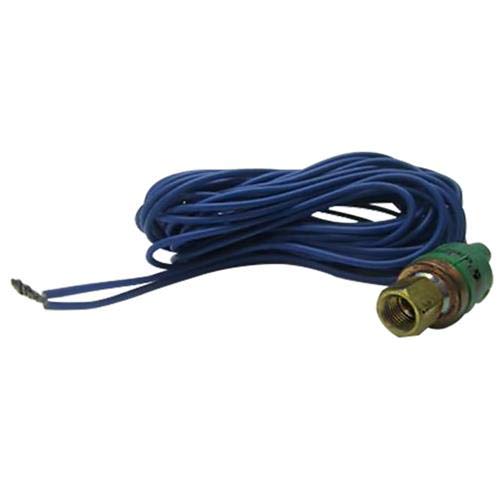

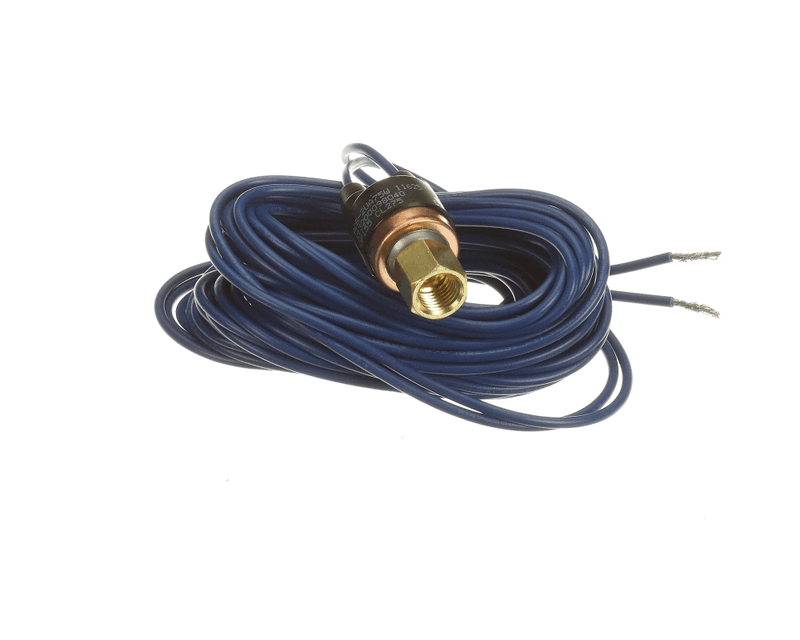

Trane SWT01190 low pressure fan switch 120/240VAC open 155 clos replaces cnt1097, swt1190

Product Description

The TRANE SWT01190 is a low pressure fan switch operating at 120/240VAC. This component is designed to open at 155 PSIG and close at 275 PSIG, functioning as a critical low pressure cutout switch for HVAC systems. It safeguards equipment by preventing operation under unsafe low-pressure conditions, ensuring reliable performance. This OEM switch is commonly found in various Trane and American Standard units.

• Operates at 120/240VAC with an open pressure of 155 PSIG and close pressure of 275 PSIG.
• Functions as a low pressure cutout switch, safeguarding HVAC systems and components.
• OEM component commonly used in Trane and American Standard units, replacing part numbers like CNT1097 and SWT1190.

Product Highlights

OEM low pressure cutout switch for HVAC systems, operating at 120/240VAC with 155 PSIG open and 275 PSIG close pressures.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: SWT01190

Technical Specifications

• Brand: TRANE
• MPN: SWT01190
• Type: Low Pressure Fan Switch
• Voltage: 120/240VAC
• Open Pressure: 155 PSIG
• Close Pressure: 275 PSIG
• Gas Temperature Rating: -65 to 275 DEG F
• Ambient Temperature Rating: -20 to 150 DEG F
• Contact Configuration: SPST
• Current Rating: 8A
• Number of Poles: 1
• Operating Pressure Range: -0.5 to 45 Bar
• Burst Pressure: 300 Bar
• Connector Type: Screw
• Number of Pins: 3
• Compatible Devices: HVAC Control Panels, Thermostats, HVAC System Components
• Recommended Uses: HVAC Pressure Monitoring and Control
• Usage Environment: Indoor
• Shape: Round
• UNSPSC Code: 39121311
