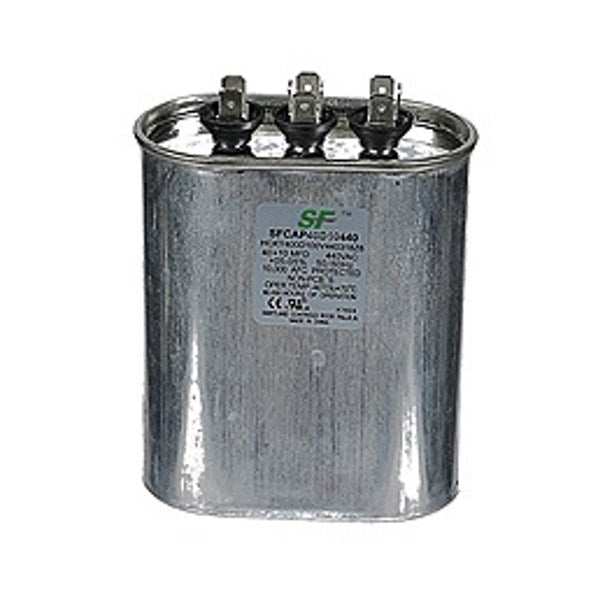

Trane SFCAP40D75440 40+7.5 uF 440 VAC dual run capacitor (oval) replaces C44075L

Product Description

Trane SFCAP40D75440 is a dual run oval capacitor rated 40 + 7.5 uF at 440 VAC. It functions as a run capacitor for HVAC motor circuits, suitable for 370 or 440 VAC applications and providing separate capacitance for fan and compressor circuits. The unit uses Dielektrol oil dielectric, includes 1/4" tab male terminals, operates from -40°C to 70°C, and is individually boxed as an OEM replacement for American Standard and Trane.

• Dual 40 + 7.5 uF capacitance rated for 440 VAC; suitable for 370 or 440 VAC applications
• Oval dual construction with 1/4" tab male terminals and Dielektrol oil dielectric
• Operating temperature range -40°C to 70°C; individually boxed; listed replacements include C44075L and POCD4075

Product Highlights

Dual 40+7.5 uF run capacitor, 440 VAC rating, 1/4" tab terminals, -40°C to 70°C

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: SFCAP40D75440
• Country of Origin: China

Technical Specifications

• Manufacturer Part Number: SFCAP40D75440
• Brand: Trane
• Type: Dual (dual oval)
• Capacitance: 40 + 7.5 uF
• Rated Voltage: 440 VAC
• Compatible Voltage: 370 VAC or 440 VAC
• Shape: Oval
• Terminals: 1/4" tab male terminals
• Dielectric: Dielektrol oil
• Operating Temperature: -40°C to 70°C
• Packaging: Individually boxed
• Replaces / Supersedes: C44075L, POCD4075, POCFD4075, TOCD4075, TOCFD4075
• Country of Origin: China
