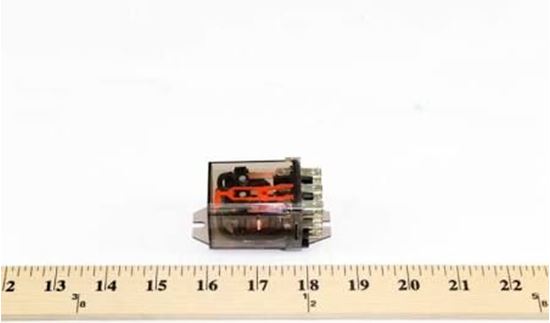

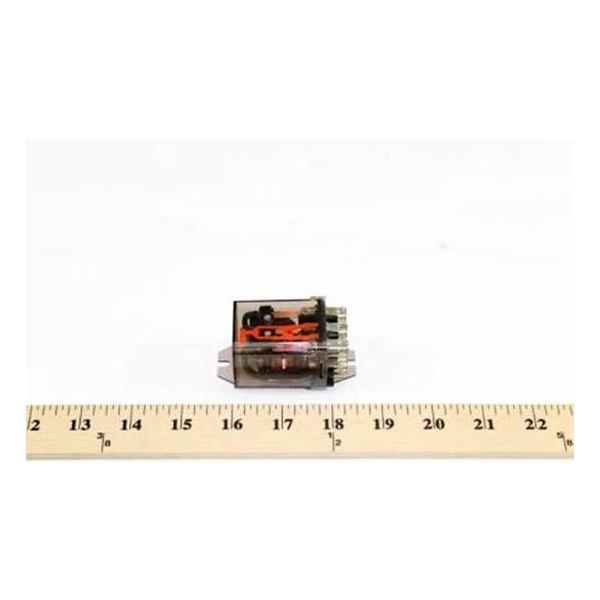

Trane RLY1794 3PDT 120V Coil Relay

Product Description

The Trane RLY1794 is a 3PDT coil relay intended for use in HVAC systems, providing reliable control for electrical circuits. It operates on a coil voltage of one hundred twenty volts, suitable for most HVAC applications. The relay is equipped with an AC contact rating of sixteen amps at two hundred forty volts, ensuring seamless operation under load.

• Coil voltage of 120V.
• Features quick-connect terminals.
• Bracket/socket mounting for easy installation.

Product Highlights

This relay is ideal for switching and controlling electrical signals in HVAC equipment, enhancing the efficiency of climate control systems.

Product Information

Standard Information

• Brand: Trane
• MPN: RLY1794

Technical Specifications

• AC Contact Rating - Relay: 16A
• Length: 2.3 inches
• Width: 1.5 inches
• Height: 2.89 inches
• Coil Voltage: 120V
• Number of Poles: 3
• Resistance: 80 Ohms
• Terminal Type: Quick Connect
• Material: Silver Cadmium Oxide Alloy Contact
• Mounting Type: Bracket/Socket
• Operating Time: 10 to 15 seconds
• Temperature Rating: 50°F
• Type: Cube
