Trane MOT1512 Motor 1/2 hp 230-460V 3 Phase

Product Description

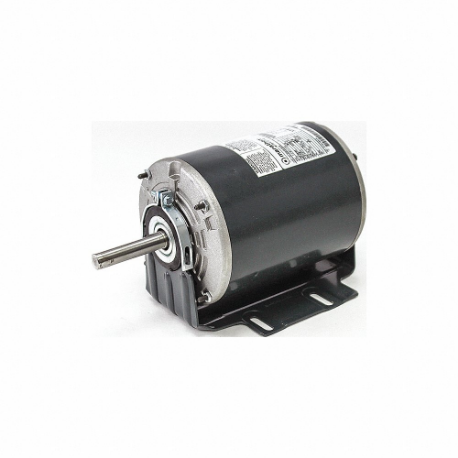

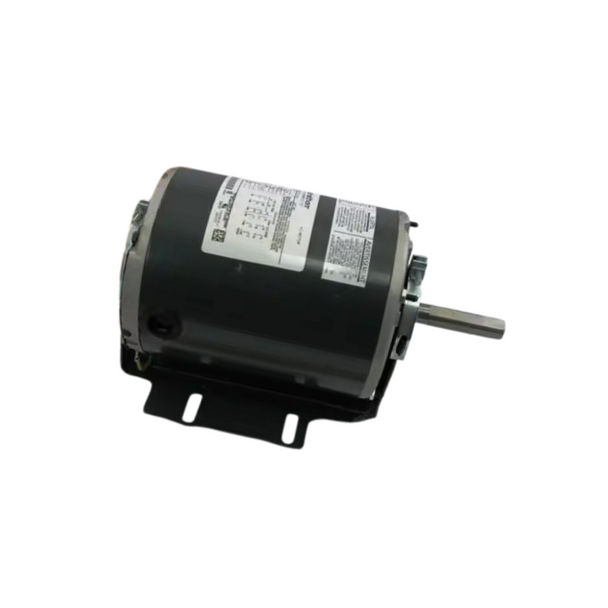

The Trane MOT1512 is a three-phase motor that operates on two hundred thirty to four hundred sixty volts AC power. It delivers a half horsepower output for various applications, making it suitable for commercial and industrial use. The motor is equipped with a resilient base for secure mounting and is designed for counter-clockwise shaft rotation when viewed from the lead end. Featuring durable ball bearings and Class B insulation, this motor ensures reliable performance.

• Power: 1/2 horsepower
• Voltage: 230-460V AC
• Design Type: Three-phase motor

Product Highlights

The Trane MOT1512 is ideal for HVAC and other machinery requiring robust performance in demanding conditions.

Product Information

Standard Information

• Brand: Trane
• MPN: MOT1512

Technical Specifications

• Item: Motor
• Frame: 48
• Full Load Current: 1.8A
• Insulation Class: Class B
• Motor Bearings: Ball
• Motor Mounting Type: Resilient Base
• Motor Shaft Rotation: CCWLE
• Nameplate RPM: 1200 RPM
• Number Of Speeds: 1
• Overall Length: 11.9375 inches
• Phase: Three
• Product Type: Motor
• RPM Range: 1101-1200 RPM
• Shaft Diameter: 5/8 inches
• Shaft Length: 2.75 inches
• Voltage: 230-460V AC
