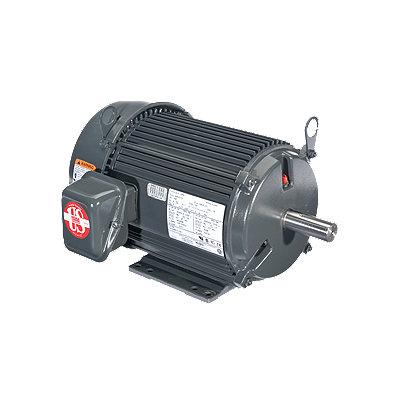

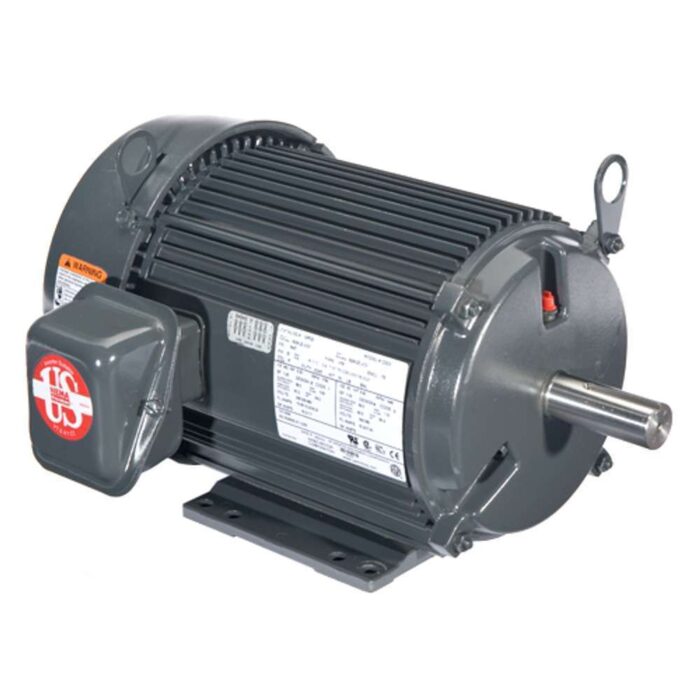

Trane MOT13900 10 HP Motor

Product Description

The Trane MOT13900 is a durable three-phase motor rated at 10 horsepower. This motor operates efficiently at 1800 RPM and is built with a robust 215T frame. It features a totally enclosed fan-cooled (TEFC) design, ensuring protection against environmental factors. With a voltage range of 208-230/460V, this motor is versatile for various applications that require reliable power.

• Powerful 10 HP motor
• 1800 RPM operation
• TEFC for better protection

Product Highlights

This motor is ideal for industrial and commercial uses where durability and efficiency are critical.

Product Information

Standard Information

• Brand: Trane
• Product Model: MOT13900

Technical Specifications

• Horsepower: 10 HP
• RPM: 1800
• Voltage: 208-230/460V
• Frequency: 50/60 Hz
• Phase: Three Phase
• Frame: 215T
• Enclosure Type: Totally Enclosed Fan-Cooled
• Shaft Diameter: 1.375 inches
• Rotation: Reversible
• Mount: Rigid Base
• Insulation Class: F
• Service Factor: 1.25
• Load Current: 26.5-23.9/12 A
• Bearing Type: Deep Groove Ball
