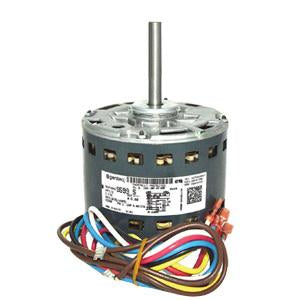

Trane MOT13512 Motor 1/3 HP 115/60/1 1075 RPM PSC 5 MFD AT 370V

Product Description

Trane Motor with MPN MOT13512 is a reliable choice for various HVAC applications. This motor delivers 0.33 hp performance and operates at 115 volts with a frequency of sixty hertz. It features a rotational speed of one thousand seventy-five revolutions per minute and is designed for counterclockwise rotation. The motor is built with a sleeve bearing and comes in a forty-eight frame size.

• Capacitor of five microfarads at 370 volts
• Open enclosure type for effective cooling
• Horizontal mounting option for easier installation

Product Highlights

This motor is ideal for heating and air conditioning systems that require consistent and reliable operation.

Product Information

Standard Information

• Brand: Trane
• MPN: MOT13512

Technical Specifications

• Bearing Type: Sleeve
• Design Torque: 28.3
• Enclosure Type: Open
• Frame Size: 48
• Frequency Rating: 60 Hz
• HP (Decimal): 0.33
• HP (Fraction): 33/100
• Insulation Class: B
• Motor Cap: 5 UF at 370 V
• Motor Type: Permanent Split Capacitor
• Mounting Type: Horizontal
• NEMA Dimensions (In): 5.6875 X 8.125
• Number of Phase: 1
• Number of Speeds: 4
• Rotation: CCW / LE
• Shaft Diameter (In): 0.5
• Speed (RPM): 1,075
• Standards: CSA, UL
• Technology: PSC
• Temperature Rating: 50 to 120 Deg. F
• Type: AC
• Voltage (VAC): 115
