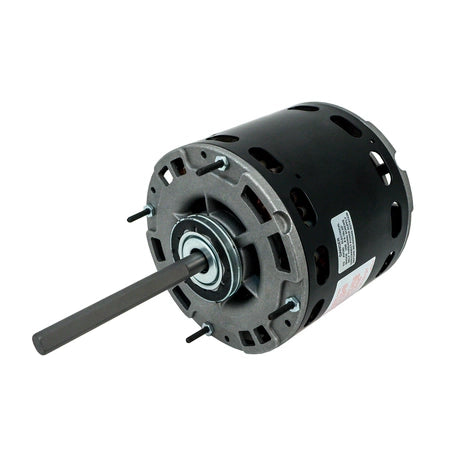

Trane MOT12677 Direct Drive Furnace Blower Motor

Product Description

The Trane MOT12677 is a direct drive furnace blower motor designed for air-over applications including furnace blowers and central air handling units. This equipment features a permanent split capacitor type with reversible rotation and is equipped with automatic overload protection.

• Direct drive motor suitable for furnace blower applications.
• Includes reversible rotation and automatic overload protection.
• Manufactured as a permanent split capacitor (PSC) motor type.

Product Highlights

This motor is efficient for heating and cooling systems.

Product Information

Standard Information

• Brand: TRANE
• MPN: MOT12677

Technical Specifications

• Horsepower: 1/4
• Voltage: 115
• RPM: 1075
• Speeds: 3
• Amps: 4.40
• Rotation: Reversible
• Frame Size: 48
• Enclosure: Open
• Phase: 1
• Shaft Diameter: 1/2 inches
• Shaft Dimension: 1/2 x 4-1/2 inches
• Shafts: 1
• Hertz: 60
• Overload Protection: Automatic
• Motor Type: Permanent Split Capacitor
• Capacitor Required: 5MFD/370V
• Bearings: Sleeve
• Diameter: 5-5/8 inches
• Length Less Shaft: 4.00 inches
• Service Factor: 1.00
• Load Factor: 1.0
