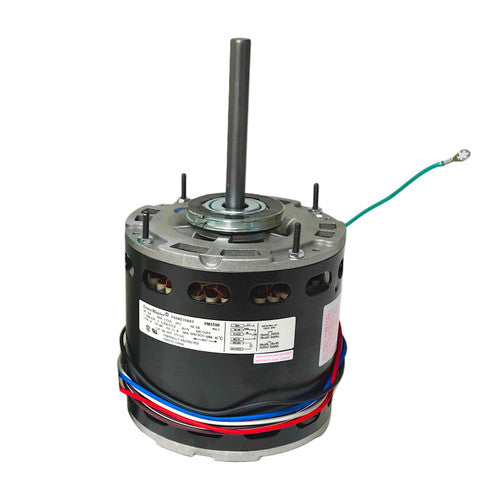

TRANE MOT12674 Direct Drive Blower Motor 3/4 HP

Product Description

The Trane MOT12674 is a direct drive blower motor suitable for HVAC applications. It functions efficiently at two hundred eight to two hundred thirty volts with a speed of one thousand seventy-five RPM. The motor offers three selectable speeds and has a reversible rotation feature, ideal for various installation requirements.

• 3/4 HP motor with adjustable three-speed options
• Operates at 208-230 volts and 1075 RPM
• Includes automatic overload protection

Product Highlights

This blower motor is designed for durability and reliability in HVAC systems, ensuring smooth operation and energy efficiency.

Product Information

Standard Information

• Brand: Trane
• MPN: MOT12674

Technical Specifications

• Horsepower: 3/4
• Speeds: 3
• Amps: 5.5, 4.5, 3.2
• Rotation: Reversible
• Capacitor: POC10
• RPM: 1075
• Bearings: Sleeve
• Diameter: 5-5/8 inches
• Enclosure: Open
• Load Factor: 1.0
• Mounting: Mounting Kit
• Service Factor: 1.00
• Shaft Length: 4.00 inches
• Motor Type: Permanent Split Capacitor
• Frame: 48
• Overload Protection: Automatic
• Phase: 1
• Shaft Diameter: 1/2 inches
• Shafts: 1
• Hertz: 60
• Shaft Dimension: 1/2 x 4-1/2 inches
• Length Less Shaft: 5-1/8 inches
• Voltage: 208-230
• Capacitor Required: 10MFD/370V
• Body Length: 5-1/2 inches
