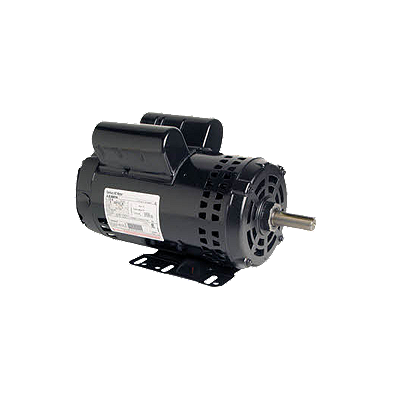

Trane MOT11972 General Purpose Motor 2 Horsepower 230V 60Hz

Product Description

The Trane MOT11972 is a general purpose motor designed for various applications. This motor operates at 230 volts and 60 hertz with a single-phase power supply. It delivers two horsepower at a speed of one thousand eight hundred RPM. The motor features a seven-eighths inch shaft and a rigid base for secure mounting. It is equipped with an open dripproof enclosure and utilizes ball bearings.

• Rated for 2 HP at 1,800 RPM.
• Operates on 230V, 60Hz single-phase power.
• Features an open dripproof enclosure.

Product Highlights

This motor is suitable for HVAC applications and other general purposes, ideal for professionals in the HVAC and electrical fields.

Product Information

Standard Information

• Brand: Trane
• Efficiency (%): 67

Technical Specifications

• Bearing Type: Ball
• Enclosure Type: Open Dripproof
• Frequency (Hz): 60
• Horsepower: 2
• Insulation Class: B
• Load Current (A): 20.4
• Mounting Type: Rigid Base
• Phase: 1
• Rotation: Reversible
• RPM: 1,700-1,800
• Service Factor: 1.15
• Shaft Diameter (In): 0.875
