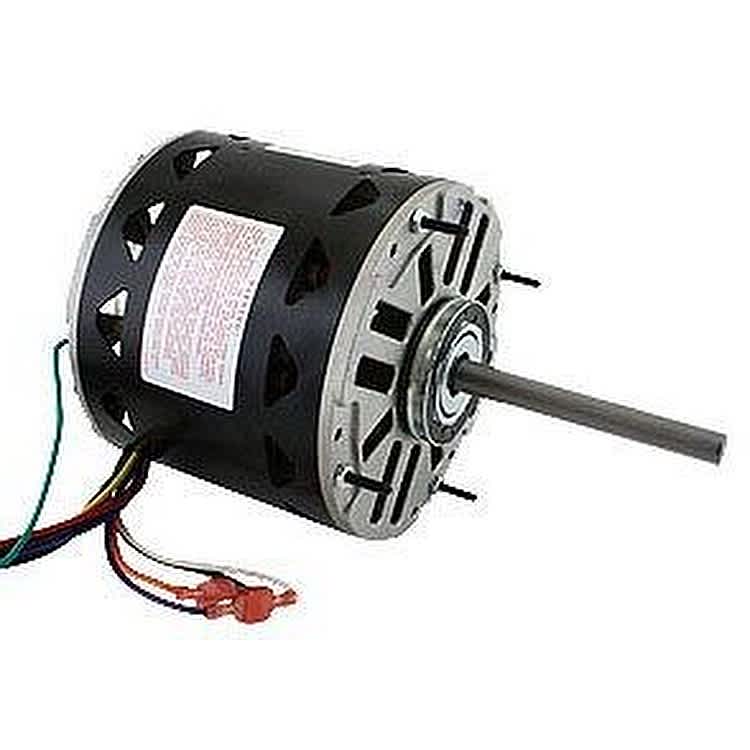

Trane MOT10433 Motor 0.17 hp 230 VAC 60 Hz 1 ph Phase 48 Frame

Product Description

The Trane MOT10433 Motor offers 0.17 horsepower at 230 VAC and operates at a frequency of sixty Hertz. This single-phase motor is designed with a 48 frame and provides a speed of eight hundred twenty-five RPM. It is suitable for various applications requiring a reliable motor.

• Capacitor of 5 uF at 370 VAC
• Automatic overload thermal protection
• Totally enclosed, non-ventilated enclosure

Product Highlights

This motor features a sleeve bearing and a service factor of one. The mounting type is band or through-bolt, making installation straightforward.

Product Information

Standard Information

• Voltage Rating: 230 VAC
• Phase: 1 ph

Technical Specifications

• Amperage Rating: 1.4 A
• HP Rating: 0.17 hp
• Speed Rating: 825 rpm
• Temperature Rating: 158 deg F
• Enclosure Type: Totally Enclosed, Non-Ventilated
• Frame: 48
• Insulation Class: Class B
• Shaft Size: 0.5 in Dia x 1.91 in L
