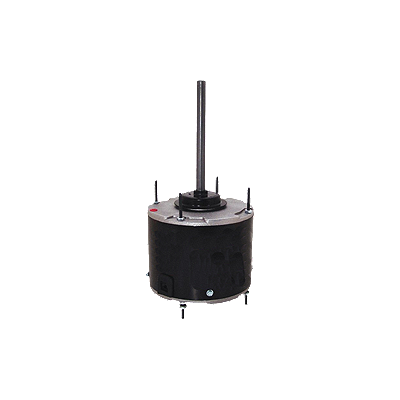

Trane MOT10411 Motor

Product Description

The Trane MOT10411 is a single-phase, permanent split capacitor motor suitable for continuous air over duty. It operates at voltages of 200-230V and 460 with a frequency of fifty to sixty Hertz, delivering one-fifth horsepower at speeds reaching eleven hundred forty RPM. This motor is constructed with a forty-eight frame and features sleeve bearings, along with a unique shaft down configuration. The rotation is clockwise, and it includes an inbuilt thermal protector.

• Motor type: Permanent Split Capacitor (PSC)
• Mounting type: Band / Through-Bolt
• Thermal protection included

Product Highlights

Product Information

Standard Information

• Brand: Trane
• Motor Type: Permanent Split Capacitor; AC; Continuous Air Over Duty

Technical Specifications

• Horsepower: 1/5
• Input Voltage: 200-230V
• Frequency: 60 Hz
• Phase: 1
• Speed: 1,140 RPM
• Enclosure Type: Totally Enclosed Air-Over
• Frame Size: 48
• Rotation: CW / LE
• Number of Speeds: 1
• Load Current: 0.8 A
