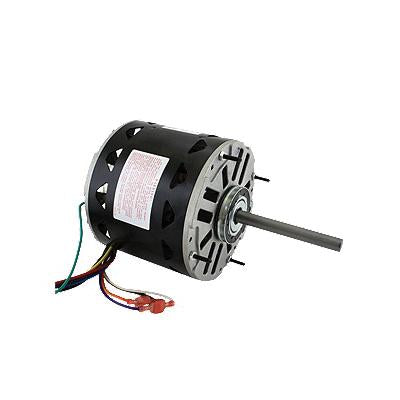

TRANE MOT09380 MOTOR 1.0 HP (460/380-415/60-50/1) MOTOR

Product Description

The TRANE MOT09380 is a one horsepower motor designed for reliability and efficient performance in various applications. It operates at dual voltages of four hundred sixty volts and three hundred eighty to four hundred fifteen volts, making it versatile for different electrical systems.

• Speed ratings of one thousand one hundred twenty-five and nine hundred fifty RPM.
• Features a ball bearing design for durability.
• Counter-clockwise rotation for standard installation.

Product Highlights

This motor includes a twenty-five microfarad capacitor rated for four hundred forty volts, ensuring stable operation. Its NEMA dimensions are five and eleven-sixteenths inches by eight and one-eighth inches, making it compatible with various mounting systems.

Product Information

Standard Information

• Voltage Rating: 460 VAC
• Phase: 1 ph

Technical Specifications

• HP Rating: 1 hp
• Speed Rating: 1125 rpm, 950 rpm
• Mounting Type: Band, Through-Bolt
• Bearing Type: Ball
• Enclosure Type: TENV
• Frame: 48
• Temperature Rating: 158 deg F
• Insulation Class: Class B
• Service Factor: 1
• Shaft Size: 0.5 in Dia x 3.67 in L
• Load Current: 2.5 A
