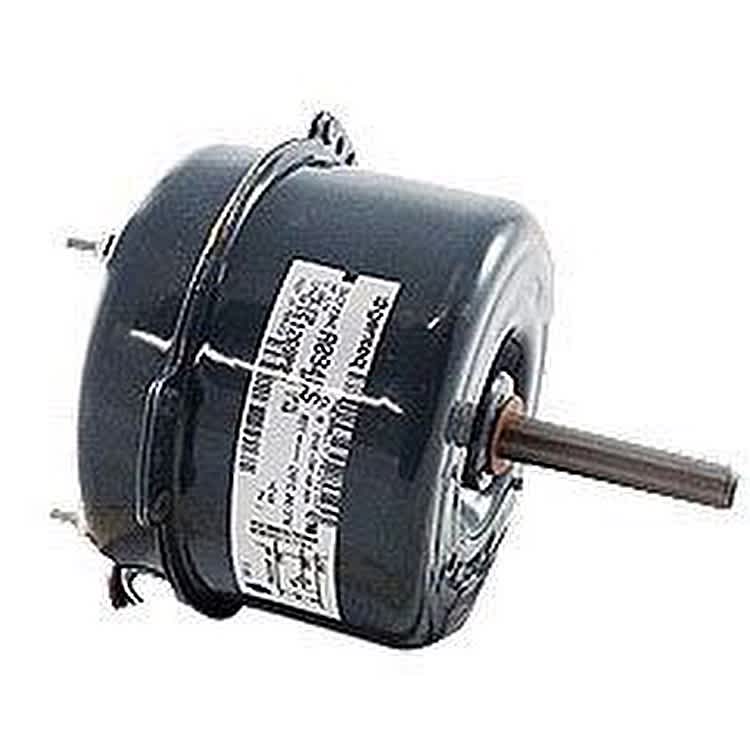

Trane MOT08804 PSC Blower Motor 1/4 hp 200-230V

Product Description

The TRANE MOT08804 PSC Blower Motor is a 1/4 hp motor operating at 200-230 V and 60 Hz. This single-phase motor features a speed of 1075 rpm and a totally enclosed air over enclosure. It is designed with ball bearings and resilient ring mounting, suitable for use with TWR036D100A0, TTR048C100A3, TWR030C100A4, and TTN030C100C4 air handlers.

• Capacitor 5 uF at 370 VAC
• Automatic overload thermal protection
• 1/2 in Dia x 2-1/2 in L Shaft

Product Highlights

This TRANE blower motor ensures efficient air circulation in HVAC systems. It offers reliable performance with its robust construction and thermal protection.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: MOT08804

Technical Specifications

• Additional Information: 5 uF at 370 V Motor Capacitor, CCW Rotation
• Amperage Rating: 1.5 A
• Bearing Type: Ball
• Enclosure Type: Totally Enclosed Air Over
• Frame: 42
• Frequency Rating: 60 Hz
• HP Rating: 1/4 hp
• Insulation Class: Class B
• Mounting Type: Resilient Ring
• Number of Speeds: 1
• Overall Depth: 10.2 in
• Phase: 1 ph
• Service Factor: 1
• Shaft Size: 1/2 in Dia x 2-1/2 in L
• Speed Rating: 1075 rpm
• Temperature Rating: 104 deg F
• Voltage Rating: 200 - 230 V
