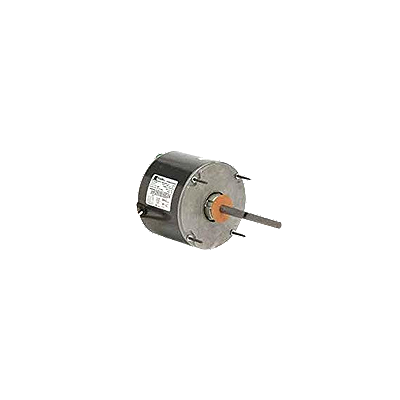

Trane MOT06805 Psc Motor 1/3 Hp 277V 3-speed

Product Description

The TRANE MOT06805 is a permanent split capacitor (PSC) blower motor rated at 1/3 horsepower for use in HVAC air handling and fan coil applications. It operates on 277 volts, single-phase, 60 Hz power and features three speed taps, giving technicians flexibility when setting airflow for different system configurations. The motor shaft rotates clockwise (CW) when viewed from the shaft end. Licensed HVAC technicians install this motor as a direct OEM replacement in Trane heating and cooling equipment where the original PSC motor has failed or degraded.

This motor is suited for residential and light commercial HVAC systems that run on 277-volt single-phase electrical service, a common supply voltage in commercial fan coil units and some air handlers. The three-speed winding allows the installer to match the motor speed to the system's design airflow requirement. Clockwise shaft rotation must be confirmed against the original motor and fan blade assembly before installation to ensure correct airflow direction through the equipment.

Key Features

• PSC motor design provides reliable, low-maintenance operation in continuous-duty HVAC blower applications
• 1/3 HP output rating suitable for residential and light commercial air handler blower assemblies
• 277V single-phase, 60 Hz input matches commercial fan coil and air handler electrical supply
• Three-speed taps allow airflow adjustment without additional external controls
• Clockwise shaft rotation when viewed from the shaft end — confirm against OEM motor before installation
• OEM Trane part number ensures fit and performance consistent with original equipment specification

Compatibility

Designed as an OEM replacement PSC blower motor for Trane HVAC equipment originally equipped with the MOT06805 motor. Consult the unit nameplate and Trane parts documentation to verify fitment before ordering.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the unit before removing the existing motor. Verify shaft rotation direction, shaft diameter, frame size, and mounting configuration match the original motor before completing the installation. Follow applicable NEC requirements for 277-volt single-phase circuits when reconnecting motor leads.

Technical Specifications

• Horsepower: 1/3 HP
• Voltage: 277 volts
• Frequency: 60 Hz
• Phase: Single-phase
• Speeds: 3-speed
• Rotation: Clockwise (CW)
• Motor Type: PSC (Permanent Split Capacitor)

Standard Information

• Brand: TRANE
• Manufacturer Part Number: MOT06805
