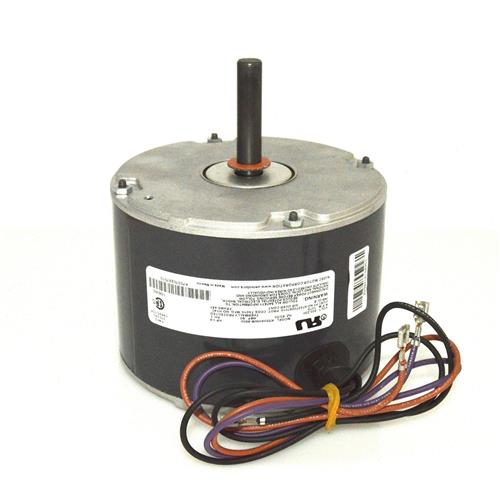

Trane MOT06612 Motor 1/10 HP 200-230V 1080 RPM

Product Description

The TRANE MOT06612 motor is designed for various applications. This 1/10 HP motor operates at 200-230V and 1080 RPM. It features automatic counter-clockwise rotation and a sleeve bearing. The motor is designed with Class B insulation and a TENV enclosure.

• HP Rating: 0.1 hp
• Speed Rating: 1080 rpm
• Voltage Rating: 230 VAC

Product Highlights

This TRANE motor is a 1/10 HP, 200-230V, 1080 RPM component with a TENV enclosure and sleeve bearing.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: MOT06612

Technical Specifications

• Additional Information: 5 uF at 370 V Capacitance, Automatic Counter-Clockwise Rotation, 5-11/16 x 8-1/8 in NEMA Dimension
• Amperage Rating: 0.75 A
• Bearing Type: Sleeve
• Enclosure Type: TENV
• Frame: 48
• Frequency Rating: 60 Hz
• HP Rating: 0.1 hp
• Insulation Class: Class B
• Mounting Type: Band, Through-Bolt
• Number of Speeds: 1
• Phase: 1 ph
• Service Factor: 1
• Shaft Size: 1/2 in Dia x 1-3/4 in L
• Speed Rating: 1080 rpm
• Temperature Rating: 158 deg F
• Voltage Rating: 230 VAC
