Trane MOT04037 Motor 1/3 HP

Product Description

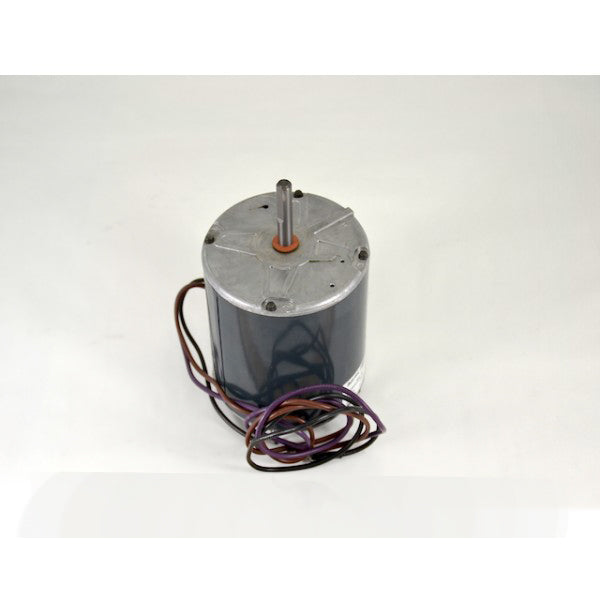

The TRANE MOT04037 motor is a 1/3 HP motor designed for condenser fan applications. It features a single-phase, 230 VAC power supply and operates at 825 RPM. The motor has a Class B insulation and TENV enclosure. It is suitable for use in various HVAC systems.

• HP Rating: 0.33 hp
• Speed Rating: 825 rpm
• Voltage Rating: 230 VAC

Product Highlights

This TRANE motor is designed for condenser fan applications, providing reliable performance with its robust construction and optimized design.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: MOT04037

Technical Specifications

• MPN: MOT04037
• Brand: TRANE
• Inventory SKU: MOT04037
• Type: Condenser Fan Motor
• Model: D146779P01
• Voltage: 200/230 v
• Additional Information: 12.5 uF at 370 V Capacitance, Counter-Clockwise Rotation, 5-11/16 x 8-1/8 in NEMA Dimension
• Amperage Rating: 2.2 A
• Bearing Type: Ball
• Enclosure Type: TENV
• Frame: 48
• Frequency Rating: 60 Hz
• HP Rating: 0.33 hp
• Insulation Class: Class B
• Mounting Type: Band, Through-Bolt
• Number of Speeds: 1
• Phase: 1 ph
• Service Factor: 1
• Shaft Size: 0.5 in Dia x 2.17 in L
• Speed Rating: 825 rpm
• Temperature Rating: 158 deg F
• Voltage Rating: 230 VAC
