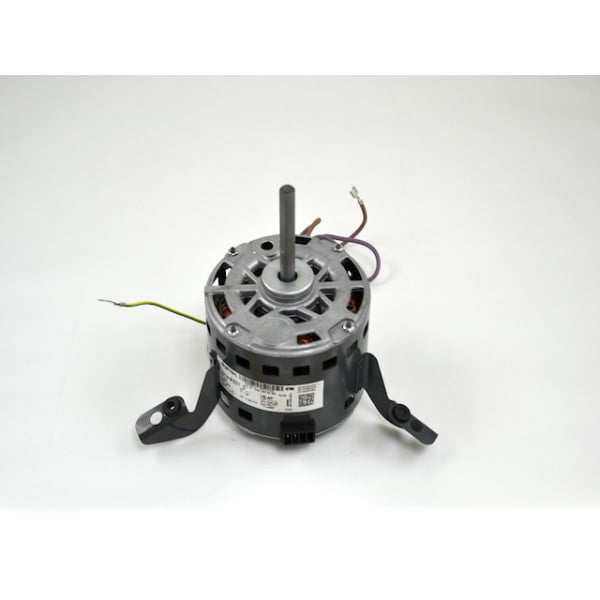

Trane MOT02579 48 CCW Motor, 1/4 HP, 230V, 1095 RPM

Product Description

The TRANE MOT02579 is a 48 CCW motor operating at 230V with 1/4 HP and a speed of 1095 RPM. This motor is designed for various applications requiring counter-clockwise rotation. It features a sleeve bearing and is suitable for use in HVAC systems and other equipment. The motor operates at 60 Hz and has a 48 frame.

• Operates at 230V and 1095 RPM
• Features 1/4 Horse Power and CCW Rotation
• Compatible with multiple models including 4WHC3024A1000AA, BWC024C100CA, and TCH024B100AC

Product Highlights

The TRANE MOT02579 is a reliable motor for applications needing 230V power, 1/4 HP, and counter-clockwise rotation.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: MOT02579

Technical Specifications

• RPM: 1095
• Voltage: 230 VAC
• Horse Power: 0.25 hp
• Rotation: CCW
• Amperage Rating: 1.8 A
• Bearing Type: Sleeve
• Enclosure Type: TENV
• Frame: 48
• Frequency Rating: 60 Hz
• Insulation Class: Class B
• Mounting Type: Band, Through-Bolt
• Number of Speeds: 1
• Phase: 1 ph
• Service Factor: 1
• Shaft Size: 0.5 in Dia x 6 in L
• Speed Rating: 1095 rpm
• Temperature Rating: 158 deg F
• Additional Information: 5 uF at 370 V Capacitance, Counter-Clockwise Rotation, 5-11/16 x 8-1/8 in NEMA Dimension
