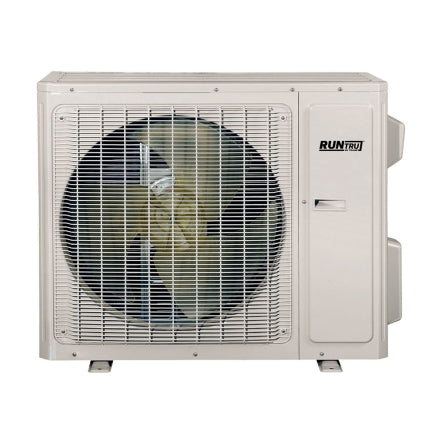

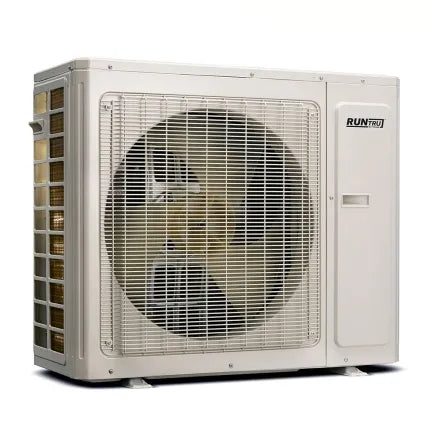

Trane M4THS2312A11NA RunTru Ductless Heat Pump Condenser 12K BTU 23 SEER2

Product Description

The TRANE M4THS2312A11NA RunTru Ductless Heat Pump Condenser delivers dependable temperature control. Pre-charged for 25 feet of piping, it includes a coil, condensate drain pan, fan motor, washable filter, air purifying filter, and electric controls. Engineered for efficient operation up to 115 degrees Fahrenheit, this condenser is constructed from heavy gauge, galvanized steel with a weather-resistant powder paint.

• Pre-charged to work with 25 feet of piping
• Equipped with factory-installed components
• Functions efficiently in ambient conditions up to 115 degrees Fahrenheit

Product Highlights

This ETL listed and AHRI certified Trane heat pump has a SEER2 rating of 23 and can handle spaces from 500 to 600 square feet.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: M4THS2312A11NA

Technical Specifications

• Model: M4THS2312A11N
• UPC: 601954743854
• Product Height (in): 23.46
• Avg Coverage Area: 500 - 600 Sq Ft
• Product Length (in): 14.87
• Compressor: Single Stage
• Product Width (in): 35.39
• Cooling Capacity: 1 Ton
• Electrical Phase: 1-Phase
• Heat Pump Efficiency (HSPF2): 9
• Line Set Connection Type: Flared
• Liquid Line Size: 1/4 inch
• Max Overcurrent Protection: 15 amps
• Weight (lbs): 90.400000
• Primary Heating Capacity: 10,001 - 15,000 BTU
• Refrigerant: R-410a
• Cooling Efficiency (SEER2): 23
• Suction Line Size: 1/2 inch
• System Application Type: Ductless Split Systems
• Voltage: 240
• Region Compatibility: Nationwide
• Brand: Trane
• Category: Air Conditioner
