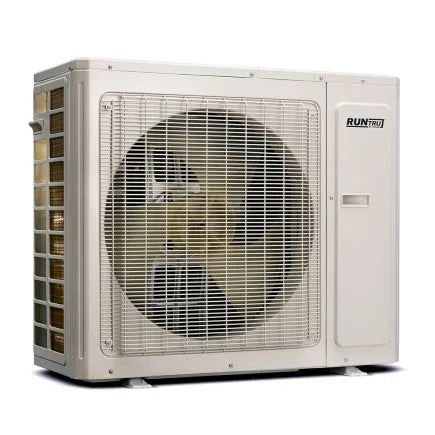

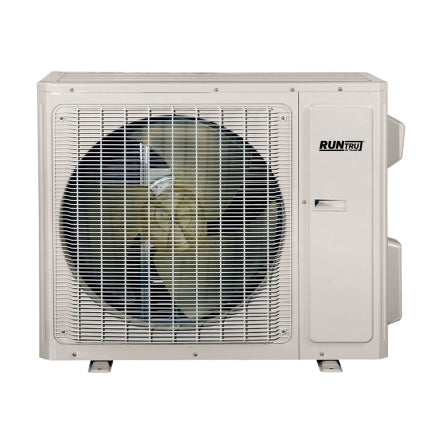

Trane M4THS2309A11NA RunTru Ductless Heat Pump Condenser 9k BTU 23 SEER2

Product Description

The TRANE M4THS2309A11NA RunTru Ductless Heat Pump Condenser delivers reliable climate control. Pre-charged for up to 25 feet of piping, it includes a coil, condensate drain pan, fan motor, washable filter, air purifying filter, and electric controls. Operable in outdoor temperatures up to 115°F, this condenser is constructed of heavy-gauge, galvanized steel with weather-resistant powder paint. AHRI certified with a SEER2 rating of 23.

• Pre-charged to accommodate up to 25 feet of piping
• ETL listing and AHRI certification
• Operates at outdoor ambient temperatures as high as 115 degrees Fahrenheit

Product Highlights

Durable construction, high-efficiency performance, and integrated safety features ensure reliable operation. Ideal for spaces up to 500 square feet.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: M4THS2309A11NA

Technical Specifications

• Model: M4THS2309A11N
• UPC: 601954743847
• Product Height (in): 23.46
• Avg Coverage Area: Less than 500 Sq Ft
• Product Length (in): 12.59
• Compressor: Single Stage
• Product Width (in): 33.39
• Cooling Capacity: Less than 1 Ton
• Electrical Phase: 1-Phase
• Heat Pump Efficiency (HSPF2): 9.5
• Line Set Connection Type: Flared
• Liquid Line Size: 1/4 inch
• Max Overcurrent Protection: 15 amps
• Primary Heating Capacity: 5,000 - 10,000 BTU
• Refrigerant: R-410a
• Cooling Efficiency (SEER2): 23
• Suction Line Size: 3/8 inch
• System Application Type: Ductless Split Systems
• Voltage: 240
