Trane M4MHW2309A1N0A RunTru 9k 23 SEER2 Hi-Wall Fan Coil

Product Description

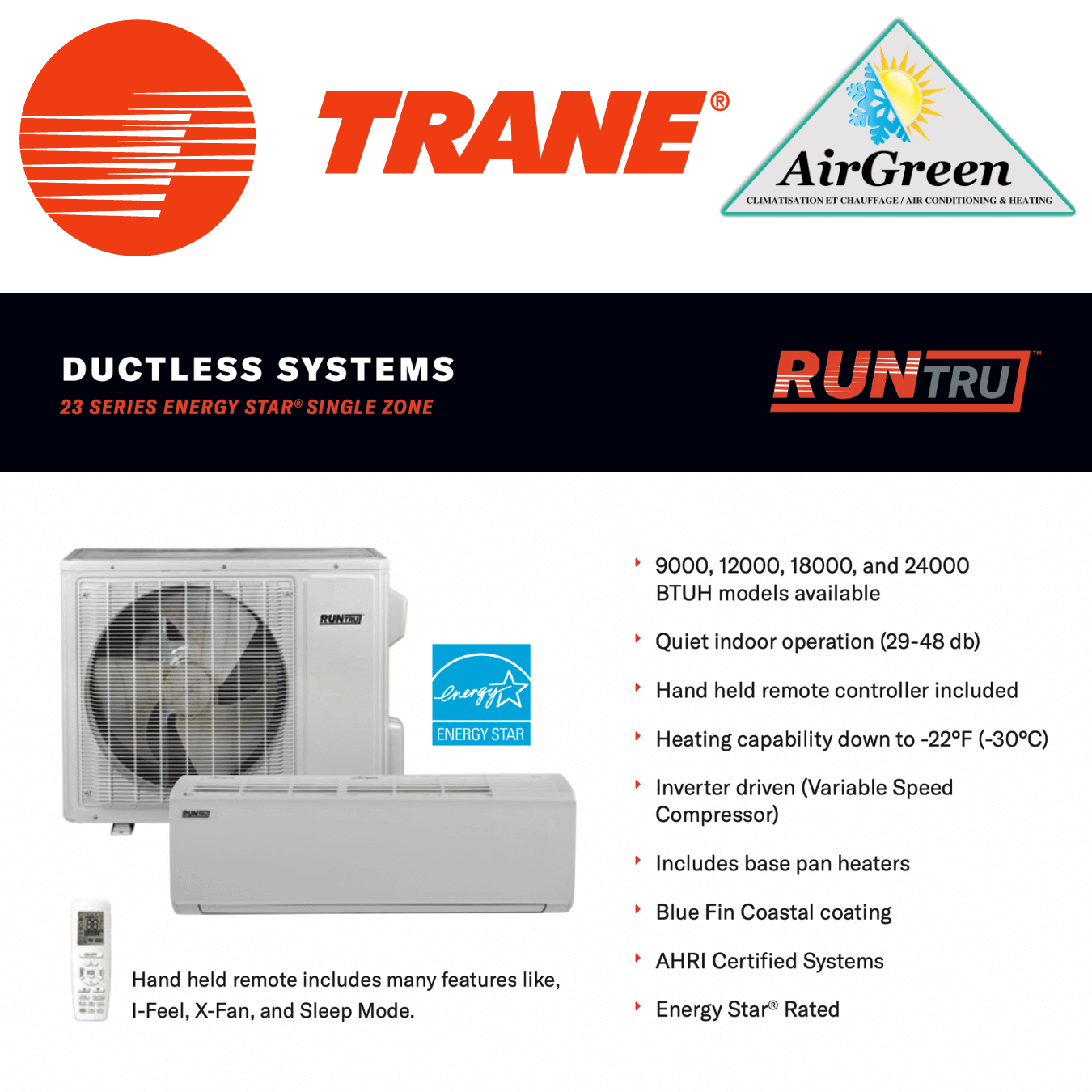

The Trane RunTru M4MHW2309A1N0A is a 9k BTU, 23 SEER2 Hi-Wall Fan Coil designed for single-zone mini-split inverter systems. It operates at 208/230V and 60Hz, and is ETL listed for outdoor applications. The unit features a washable filter, air purifying filter and electric controls to be used with a wireless remote controller.

• Energy Star certified
• Single Zone Mini-Split Inverter System
• Wireless remote controller included

Product Highlights

This Trane RunTru fan coil offers efficient cooling and heating with features like auto swing, a combined active carbon and catechin filter, and a durable design.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: M4MHW2309A1N0A

Technical Specifications

• RATED Volts/PH: 208 / 230 / 1
• Frequency (Hz): 60Hz
• Rated Cooling Capacity (Btu/h): 9100
• Minimum Cooling Capacity (@95°F) (Btu/h): 2457
• Maximum Cooling Capacity (@95°F) (Btu/h): 10748
• Rated Heating Capacity (@17°F) (Btu/h): 11000
• Minimum Heating Capacity (@47°F) (Btu/h): 2593
• Maximum Heating Capacity (@47°F) (Btu/h): 13307
• Total Capacity (W) Cooling: 3150/2667/720
• Total Capacity (W) Heating: 3900/3224/760
• Nominal Power Input (W) Cooling: 618
• Nominal Power Input (W) Heating: 860
• Nominal Input Current (A) Cooling: 5.8
• Nominal Input Current (A) Heating: 7.2
• SEER: 23
• HSPF: 11.2
• EER (Btu/h)/W: 14.7
• COP: 3.75
• Air Flow Volume (CFM): 353.1/323.675/294.25/265/235.4/205.975/194.205
• Dehumidifying Volume (pt./h): 1.69
• Indoor Unit: M4MHW2309A1N0A
• Fan Motor Speed (r/min) Cooling: 1300/1200/1100/1000/900/800/750/500
• Fan Motor Speed (r/min) Heating: 1300/1200/1100/1000/900/850/800
• Fan Motor RLA(A): 0.22
• Evaporator: Aluminum Fin-Copper Tube
• Pipe Diameter (inch): 18/64
• Rows - Fin Gap (inch): 2 - 4/64
• Coil length (L) x depth (D) x coil width (W) (inch): 29 14/64 × 1 32/64 × 21 42/64
• Output of Swing Motor (W): 1.5
• Fuse (A): 3.15
• Sound PRESSURE Level dB (A): 52
• Uncrated Dimension (W/H/D) (inch): 33 25/64 × 23 30/64 × 12 38/64
• Crated Dimension of Package (L/W/H) (inch): 34 44/64 × 14 19/64 × 25 25/64
• Net Weight (lbs): 73.9
• Gross Weight (lbs): 80.5
• Outdoor Unit: M4THS2309A11NA
• Compressor Type: Rotary
• Compressor Oil Type: FW68DA or equivalent
• Compressor RLA(A): 6
• Compressor Power Input(W): 860
• Throttling Method: EEV
• Working Temp Range (°F) Cooling: -20~122
• Working Temp Range (°F) Heating: -22~86
• Condenser: Aluminum Fin-Copper Tube
• Fan Motor Speed (rpm): 900
• Output of Fan Motor (W): 30
• Fan Motor RLA (A): 0.4
• Air Flow Volume of Outdoor Unit (CFM): 1294
• Fan Diameter (inch): 17 16/64
• Defrosting Method: Automatic Defrosting
• Refrigerant Charge (oz): 36.3
• MCA: 9
• MOP: 15
• Gas additional charge(oz/ft): 0.2
• Outer Diameter Liquid Pipe (inch): 1/4
• Outer Diameter Gas Pipe (inch): 3/8
• Max Height Distance (ft): 32.8
• Max Length Distance (ft): 49.2
• Cooling Capacity: 9,000 BTU
• Heating Capacity: -30°C
• Serial Number (Exterior): M4THS2309A11NA
• Serial Number (Interior): M4MHW2309A1N0A
• Energy Star®: Yes
• Voltage: 220V
