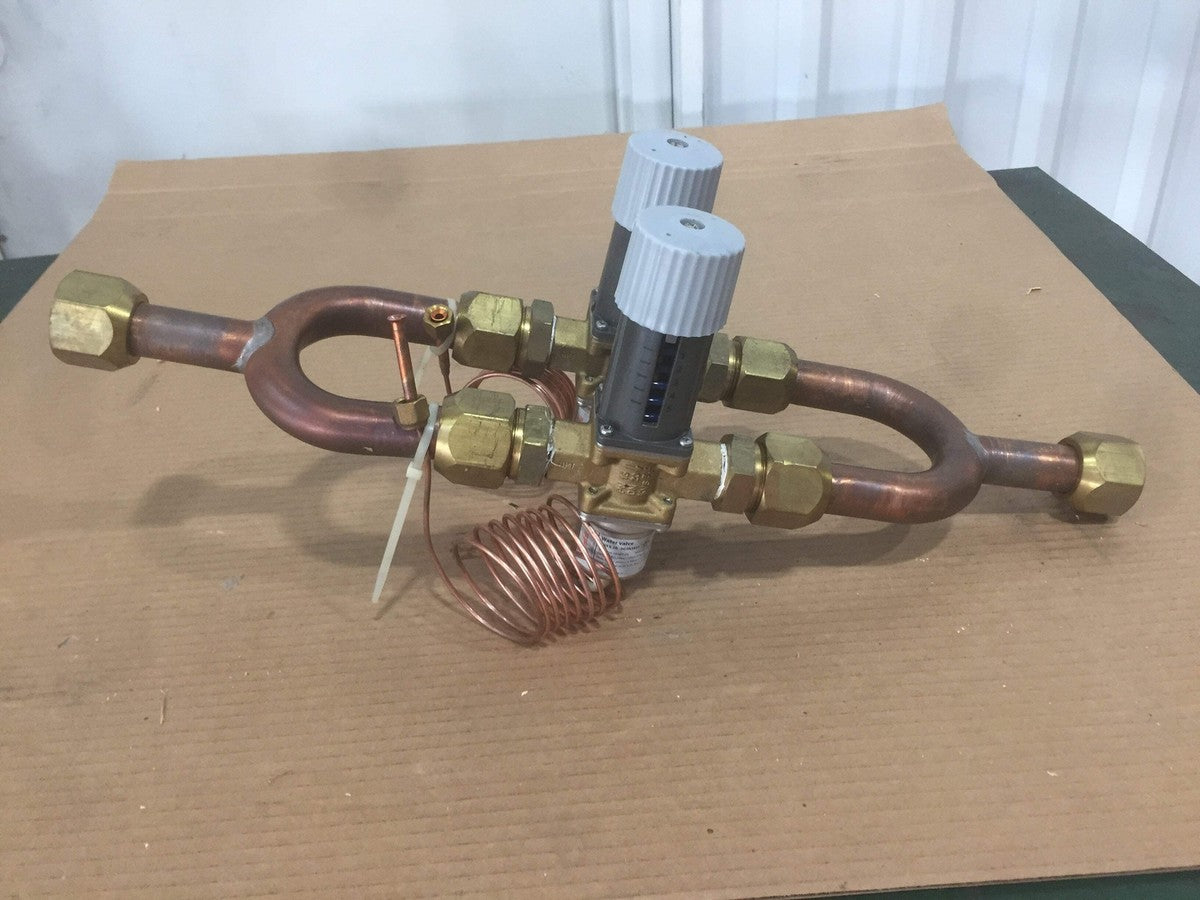

TRANE KIT14665 10-12 TON WATER REGULATING VALVE KIT

Product Description

The TRANE KIT14665 is a water regulating valve kit suitable for 10-12 ton HVAC systems. This valve kit includes essential components needed for effective water regulation within the system, ensuring optimal performance.

• Designed for 10-12 ton systems
• Includes necessary components for water regulation
• Suitable for SWH100/120/150 models

Product Highlights

This kit facilitates the regulation of water flow and supports the efficient operation of compatible HVAC systems.

Product Information

Standard Information

• Brand: TRANE
• MPN: KIT14665

Technical Specifications

• Inlet Size: 1 1/4 inches
• Outlet Size: 1 1/4 inches
• Dimensions: Height-9 inches, Width-24 inches, Depth-6 inches
• Adapters: 1 1/4 inch NPT Male X 1 1/2 inch UNF Male & 1 1/4 inch NPT Female X 1 1/2 inch UNF Male
• Valve Set: 2 x WVFX20 Valves with 3/4 inch piping connections
• Capillary Tube Connection Size: 3/4 inch
• Range: 4-26 Bar / 60-375 Psig
• Max Water Pressure: 16 Bar / 235 Psig
• Maximum Working Pressure (Refrigerant): 45.2 Bar / 655 Psig
