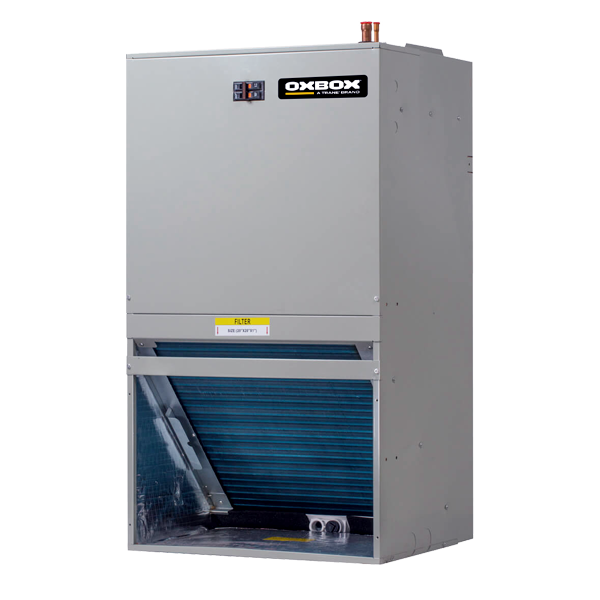

Trane JMM4A0A24S21SAA OxBox 2 Ton Wall-Mount Air Handler

Product Description

The Trane JMM4A0A24S21SAA OxBox wall-mount air handler efficiently circulates warm and cool air. This two-ton air handler fits various spaces due to its multiple installation configurations. It is designed for adaptability with 13, 14, and 16 SEER models, supporting cooling and heating for front and bottom return setups.

• Compatible with 13, 14, and 16 SEER models
• Features all-aluminum coils for better heat exchange
• Equipped with a painted metal cabinet and insulation

Product Highlights

The Trane OxBox JMM4A0A24S21SAA delivers reliable performance with a built-in filter rack and durable construction.

Product Information

Standard Information

• Product Category: Air Handler
• Product Line: JMM4

Technical Specifications

• Tons: 2
• AC/WC: Air-Cooled
• BTU: 24,000
• CFM: 800
• Handing: Multi-Position
• Voltage: 208/230-1-60
• MCA (AHU): 1.3
• MOCP (AHU): 15
• Orientation: Vertical Front Return
• Cooling Stages: 1
• Motor Type: PSC
• Refrigerant Type: R-410A
• Liquid Line Size (OD): 0.375
• Suction Line Size (OD): 0.75
• Net Weight: 88
• Net Length/Depth: 15
• Net Width: 20.5
• Net Height: 36.5
• Blower Motor Type: Multi-Speed
• Configuration: Upflow
• Installation Location: Indoor
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 1.3 Amps
• Recommended Breaker Size: 15 Amps
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Shipping Height: 39.375
• Shipping Width: 17.67
• Shipping Length: 22.85
• Shipping Weight: 97
• ETL Listed: Yes
• AHRI Certified: Yes
• Unit Replacement Warranty: 1 Year
• Parts Warranty: 5 Years
