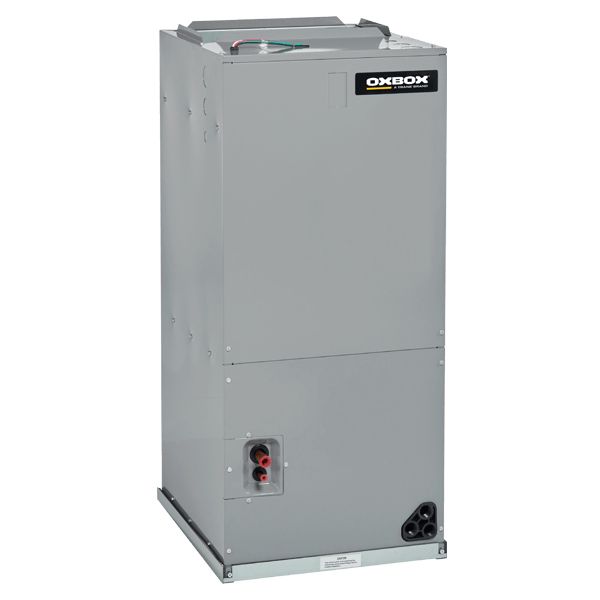

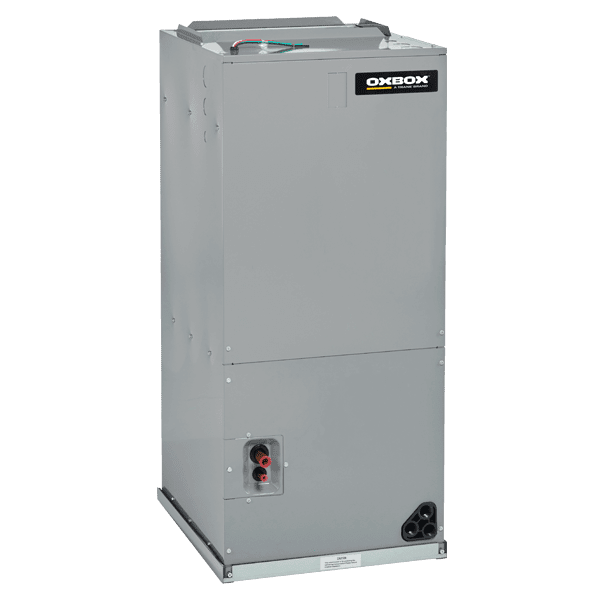

Trane J5AH4P60A1C00A 5 Ton Air Handler

Product Description

The Trane OxBox J5AH4P60A1C00A is a reliable air handler that effectively circulates both warm and cool air. This model features design versatility with multiple airflow options including vertical upflow or downflow and horizontal configurations. The unit is constructed with durable all-aluminum coils and a painted galvanized steel cabinet to prevent rust. Auxiliary heating options are available, and the model includes dual drainage spouts to accommodate various installation needs. For easy maintenance, the removable front panel and slide-out blower and coil assemblies provide accessible serviceability.

• Features all-aluminum coils
• Offers multiple airflow designs for convertibility
• Equipped with dual drainage spouts for flexible installation

Product Highlights

This air handler is designed for high performance in both residential and commercial settings.

Product Information

Standard Information

• Brand: OxBox by Trane
• Model Number: J5AH4P60A1C00A

Technical Specifications

• Cooling Capacity: 5 Ton
• Electrical Phase: 1-Phase
• Blower: Multi-Speed
• Refrigerant Type: R-454B
• Suction Line Valve Connection: 7/8 outside diameter
• Liquid Line Valve Connection: 3/8 outside diameter
• Air Handler Dimensions: H54 1/2 x W22 x D24
• Weight: 176 lbs
• Volts: 208/240
• Phase: 1
• Hertz: 60
• EER: 11.7
• Cooling Efficiency: 14 SEER2
• Indoor Unit Air Flow: Upflow (Top Discharge), Downflow (Bottom Discharge), Horizontal (Side Discharge)
