Trane ICM2916 Gas Ignition Control Board Replacement For Trane D674712p02

Product Description

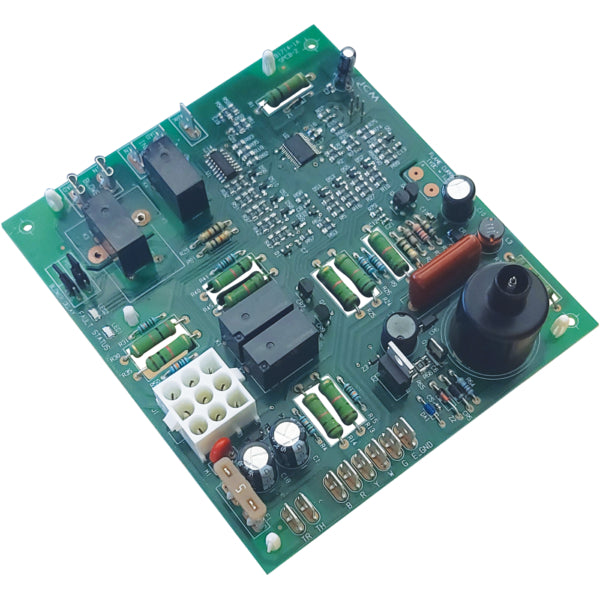

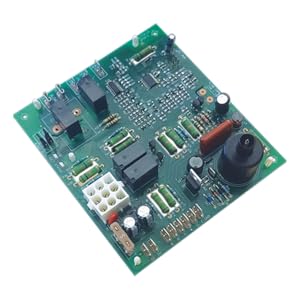

The TRANE ICM2916 Direct Spark Ignition (DSI) Control Board from ICM Controls manages spark ignition sequencing, gas valve activation, inducer and blower operation, and safety monitoring for consistent furnace performance. It is a replacement ignition control module designed for residential and light commercial furnace applications.

• Controls blower motors, gas valve, & spark ignitor in sequence
• Protects against short cycling
• Selectable Heat/Cool blower off-delay time

Product Highlights

The ICM2916 offers professional-grade performance and simplified replacement for technicians and homeowners alike. Flash codes from the onboard LED indicate specific problems for easier troubleshooting.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: ICM2916

Technical Specifications

• Manufacturer: Icm
• Manufacturer #: ICM2916
• Parts Town #: ICMICM2916
• Units: Each
• Part Number: ICM2916
• Item model number: ICM2916
• Material: Copper
• Item Package Quantity: 1
• Included Components: Control
• Batteries Included?: No
• Batteries Required?: No
• Line voltage: 230 VAC
• Line frequency: 50/60 Hz
• Control voltage: 18-30 VAC
• Circulating blower: 4FLA @ 277 VAC
• Hi-efficiency blower: 10 mA @ 24 VAC
• Inducer blower: 0.7 FLA, 1.5 LRA @ 240 V
• Combined gas valve load: 1.5 A @ 24 VAC
• Minimum flame signal threshold: 0.75 uA
• Category: ICM Controls
• Product category: Relays & Contactors
• Product subcategory: Special Relays
• Short desc: Trane Replacement Furnace Control Board
• Supplier part number: ICM2916
