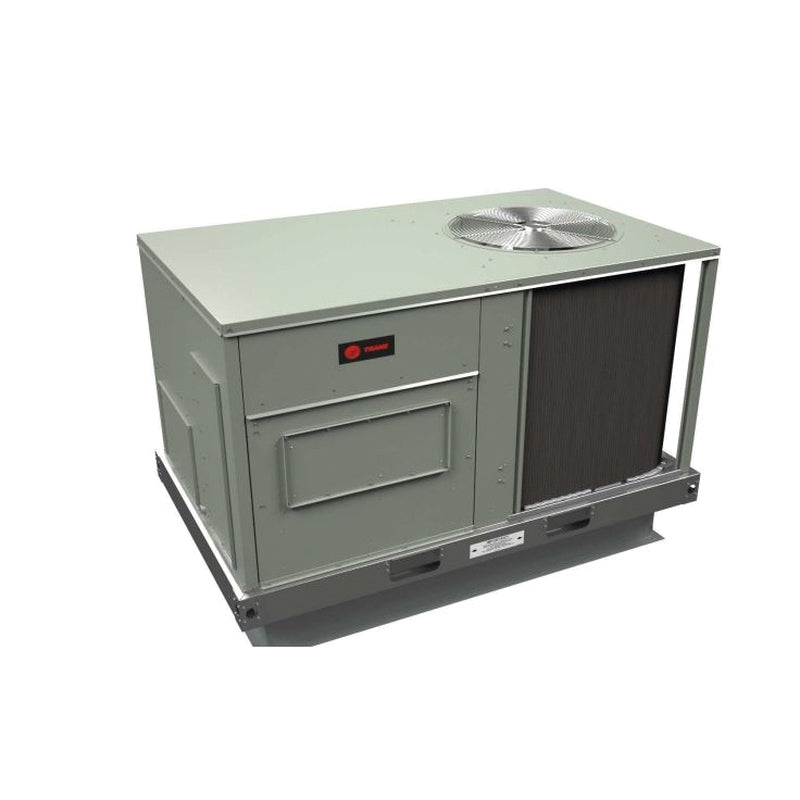

Trane GBC048A4EMB0000 Gas/Electric Packaged Unit 4 Ton 92,000 BTU

Product Description

The Trane GBC048A4EMB0000 is a powerful HVAC system combining heating and cooling. With a 4-ton capacity, it's suitable for medium to large-sized spaces, providing efficient climate control. It features a gas heating system for efficient heating and an electric cooling system for reliable air conditioning. This unit offers reliable performance and comfort.

• 4 Ton, 14 SEER
• Up to 92,000 Heating BTUs with 80-82% efficiency
• Gas heating system for efficient heating during colder months

Product Highlights

The Trane GBC048A4EMB0000 provides both gas heating and electric cooling in one convenient package. It is designed for energy efficiency and reliable performance.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: GBC048A4EMB0000

Technical Specifications

• SKU: GBC048A4EMB0000
• Refrigerant Charge: Pre-Charged
• Brand/Manufacturer: Trane
• Cooling BTU: 48,000 BTU
• Heating BTU: 92,000 BTU
• Drive Type: Direct
• Maximum CFM: 1600
• Refrigerant: R410A
• SEER1 (Efficiency): 14
• EER: 12
• Condenser Stages: Single Stage
• Compressor Type: Scroll
• Electrical: 460v 3 Phase 60 Hz
• Phase: Three Phase
• Tonnage: 4 Ton
• AFUE Rating: 90.1 %
• Amperage Rating: 11 A
• CFM Rating: 1600 cfm
• Coil Rating: 13.46 sq-ft Face Area Outdoor, 6.44 sq-ft Face Area Indoor
• Configuration: Convertible
• Decibel Rating: 80 dB
• Drain Connection: 3/4-14 FNPT
• Frequency Rating: 60 Hz
• Fuse Rating: 15 A
• HP Rating: 1/3 hp
• Ignition Type: Direct Spark
• Input BTU Rating: 48000 Btu/hr Cooling, 115000 Btu/hr Heating
• Material: Steel
• Number of Burners: 3
• Number of Stages: 2
• Output BTU Rating: 92000 Btu/hr
• Refrigerant Type: R-410A
• Rotational Speed: 1100 rpm
• SEER Rating: 14
• Steady State Efficiency: 80 %
• Temperature Rating: 40 deg F
• Voltage Rating: 460 V
• Model: GBC048A4EMB0000
• Product: Packaged Unit/RTU
