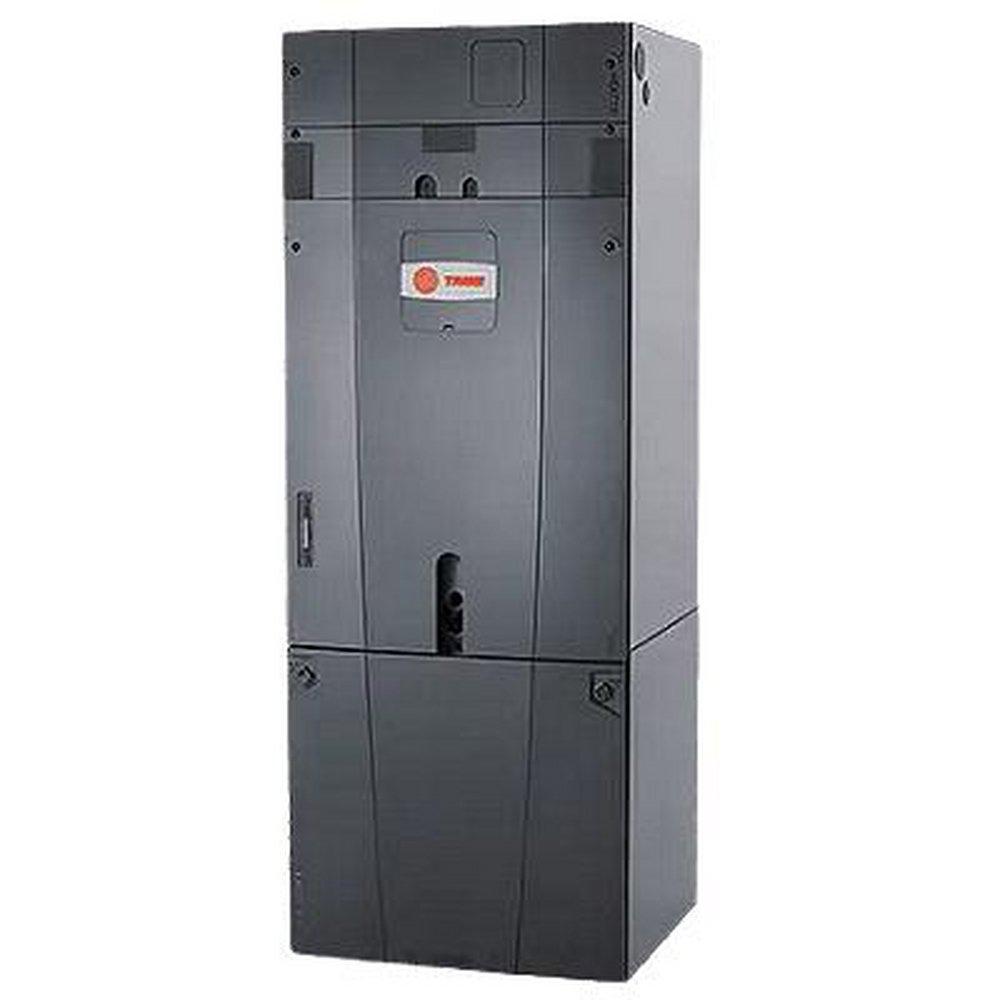

Trane GAM5B0B36M31EB GAM5B Series 3 Ton Air Handler 208/230V

Product Description

The TRANE GAM5B0B36M31EB is a 3 Ton multi-position, single-stage, multi-speed air handler designed for use with R-410A refrigerant. Operating at 208/230V, this unit features a 21" width and is part of the GAM5B Series. It is suitable for various installation configurations.

• 3 Ton cooling capacity
• Multi-position installation (Downflow, Horizontal Left, Horizontal Right, Upflow)
• Operates on 208/230V single-phase power

Product Highlights

The TRANE GAM5B0B36M31EB air handler provides efficient and versatile air handling for residential and commercial HVAC systems.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: GAM5B0B36M31EB

Technical Specifications

• A2L Compatible: No
• AMP: 4.1
• BTU: 36000
• Blower Type: ECM
• Coil Type: Plate Fin
• Collection: GAM5B Series
• Communicating: Non-Communicating
• Configuration: Downflow, Horizontal Left, Horizontal Right, Upflow
• Depth: 21-3/4
• Fan Speeds: 5
• Height: 55-3/4
• Horsepower: 0.5 hp
• Liquid Line (OD): 3/8
• MBH: 36
• Phase: Single Phase
• Refrigerant: R-410A
• Refrigeration Control Type: TXV
• Suction Line (OD): 7/8
• Tonnage: 3 Ton
• Volts: 208/230V
• Width: 21-1/4
