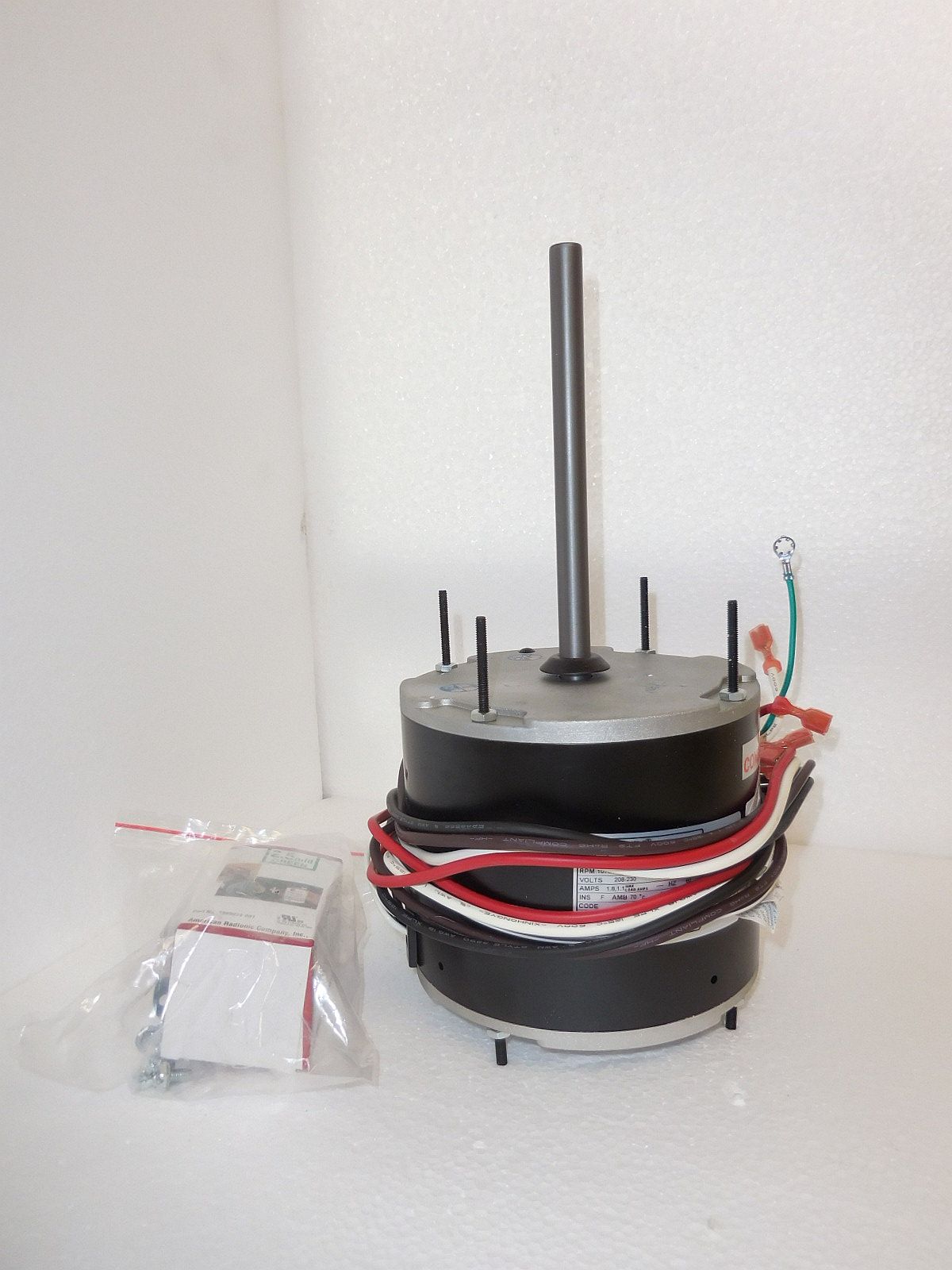

Trane FE6000F MOTOR 1/3, 1/5 HP, 1075 RPM, 208-230 VOLT REPLACEMENT Century FE6000F, Grainger 6TWK5

Product Description

The TRANE FE6000F is an AC condenser fan motor operating at 208-230V. It features a two-speed motor with a power range of 1/3 to 1/5 HP and a speed of 1075 RPM. The motor has a TEAO enclosure, Class F insulation, and automatic and thermal overload protection. It is designed for through-bolt mounting.

• Operates at 208-230 VAC and 60 Hz
• Features a TEAO enclosure and Class F insulation
• Includes automatic and thermal overload protection

Product Highlights

This AC condenser fan motor is designed for durability and efficient performance in a variety of applications. It includes a capacitor for reliable operation.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: FE6000F

Technical Specifications

• Bearing Type: Ball
• Efficiency (%): 65
• Enclosure Type: TEAO
• Frame Size: 48
• Frequency Rating: 60 Hz
• HP (Decimal): 0.2
• HP (Fraction): 1/5
• Harness Length/Terminal Type: Lead
• Insulation Class: F
• Load Current (A): 2.8
• Motor Cap: 7.5 UF at 370 V
• Motor Type: AC, Condenser Fan
• Mounting Type: Through-Bolt
• Number of Phase: 1
• Number of Speeds: 2
• Protector Type: Automatic
• Rotation: CCW
• Service Factor: 1
• Shaft Diameter (In): 0.5
• Shaft Length (In): 6.5
• Speed (RPM): 1075
• Standards: CSA,UL
• Technology: PSC
• Temperature Rating: 104 to 158 Deg. F
• Thermal Protector: True
• Voltage (VAC): 200 to 230
• Part Number: Century FE6000F, Grainger 6TWK5
• Includes: Capacitor
