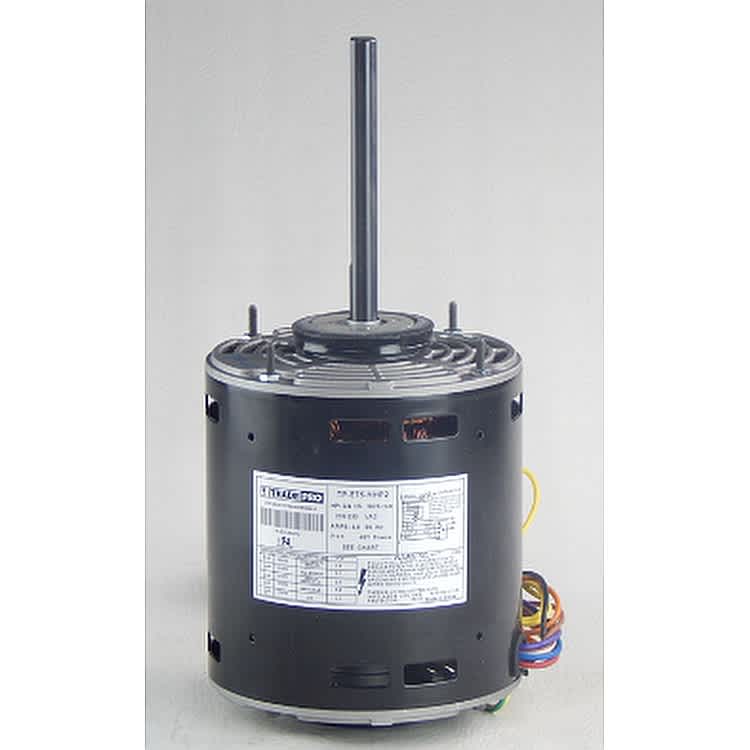

Trane FD6001A Century Fan and Blower Motor 3/4-1/5 hp

Product Description

The TRANE FD6001A Century Fan and Blower Motor is a 208-230V, 1 phase motor with 3/4-1/5 HP and 1075 RPM. It features open air over and class B insulation, operating at a 40°C ambient temperature. Designed for direct drive fan and blower applications, this motor ensures efficient and reliable performance.

• Permanent Split Capacitor (PSC) design
• Thermally protected for enhanced safety
• Ball bearing construction for durability

Product Highlights

Durable fan and blower motor with PSC design, thermal protection, and ball bearing construction.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: FD6001A
• Country of Origin: India

Technical Specifications

• Phase: 1
• Output HP: 3/4-1/5 Hp
• Output KW: 0.56 kW
• Voltage: 208-230 V
• Speed: 1075 rpm
• Service Factor: 1
• Frame: 48Y
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 5.1-4.2-3.1 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 10.36 in
• Frame Length: 5.49 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 4.0 in
