Trane fan05468 Centrifugal Fan Assembly for DHR30NDB21S

Product Description

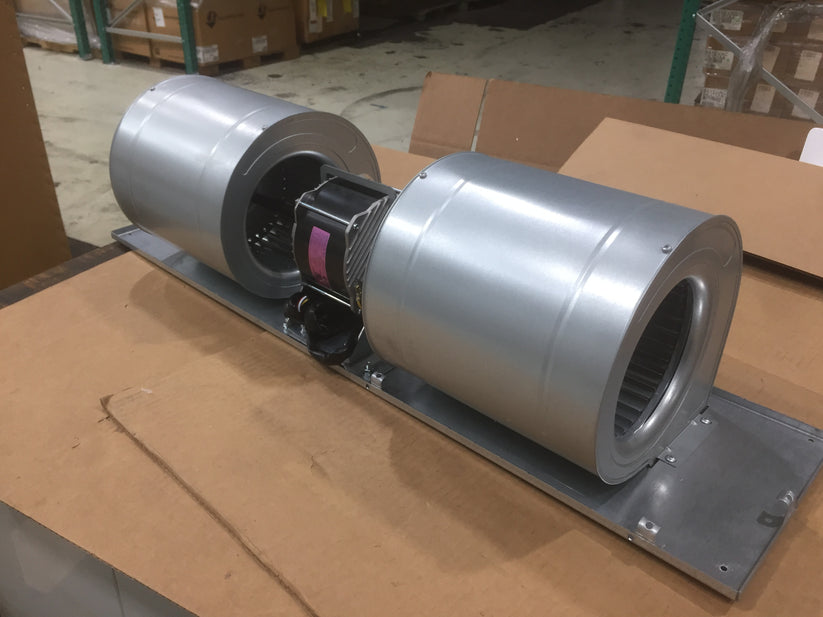

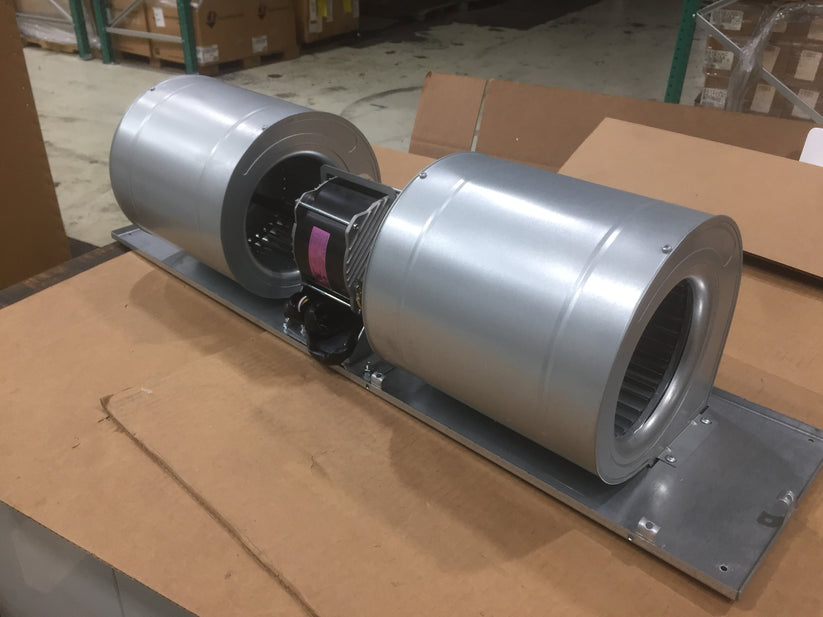

The TRANE fan05468 is a centrifugal fan assembly designed as a direct replacement component for compatible Trane HVAC equipment. The assembly integrates a DC motor rated at 200 to 375 volts and 150 watts, spinning at 1300 RPM to move conditioned air through the system. At 34.375 inches in length, 9 inches in height, and 9 inches in width, this is a full-size blower assembly shipped in manufacturer packaging. Weighing 20 pounds, it is a substantial component that requires proper handling and support during installation. Licensed HVAC technicians performing component-level repairs on compatible Trane units will find this a direct path to restoring system airflow performance.

This centrifugal fan assembly is intended for use in Trane HVAC systems within the housing, wheel, and motor category. It is sized for cabinet size 9 applications. The assembly is suited for residential or light commercial equipment where a blower module replacement is required rather than a full unit swap. The input identifies this part as specific to the DHR30NDB21S model, making it a targeted replacement for that unit.

Key Features

• DC motor rated 200 to 375 volts and 150 watts for variable-voltage system compatibility
• 1300 RPM motor speed for consistent airflow delivery
• Full assembly dimensions: 34.375 inches long, 9 inches high, 9 inches wide
• Cabinet size 9 form factor for direct fitment
• Ships in original manufacturer packaging to protect assembly integrity during transit

Compatibility

Identified as a replacement centrifugal fan assembly for the Trane DHR30NDB21S. No additional compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the unit before removing the existing fan assembly. The assembly is heavy at 20 pounds and should be supported during removal and reinstallation to avoid stress on mounting points or ductwork connections. Verify motor wiring connections match the existing harness before restoring power.

Technical Specifications

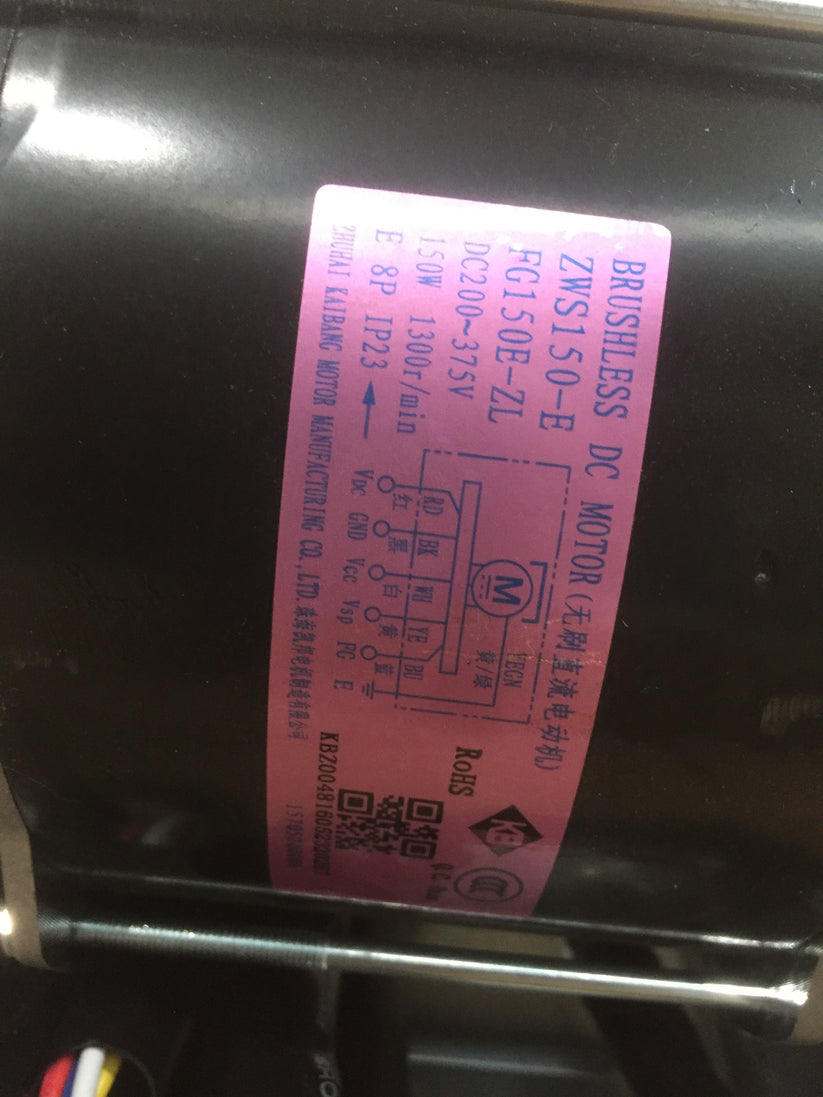

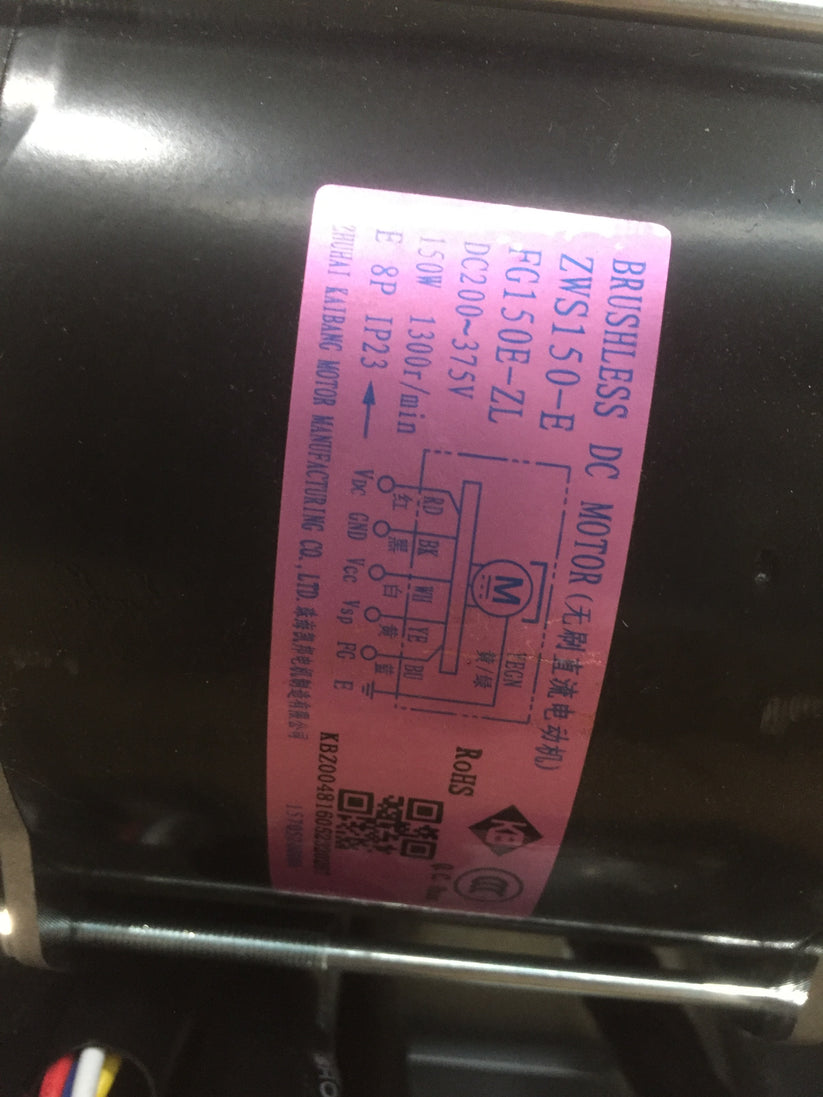

• Motor Voltage: 200 to 375 volts DC
• Motor Wattage: 150 watts
• Motor Speed: 1300 RPM
• Height: 9 inches
• Width: 9 inches
• Length: 34.375 inches
• Weight: 20 pounds
• Cabinet Size: 9
• Category: Housing/Wheel/Motor
• Packaging: Manufacturer packaging

Standard Information

• Brand: TRANE
• Manufacturer Part Number: fan05468
