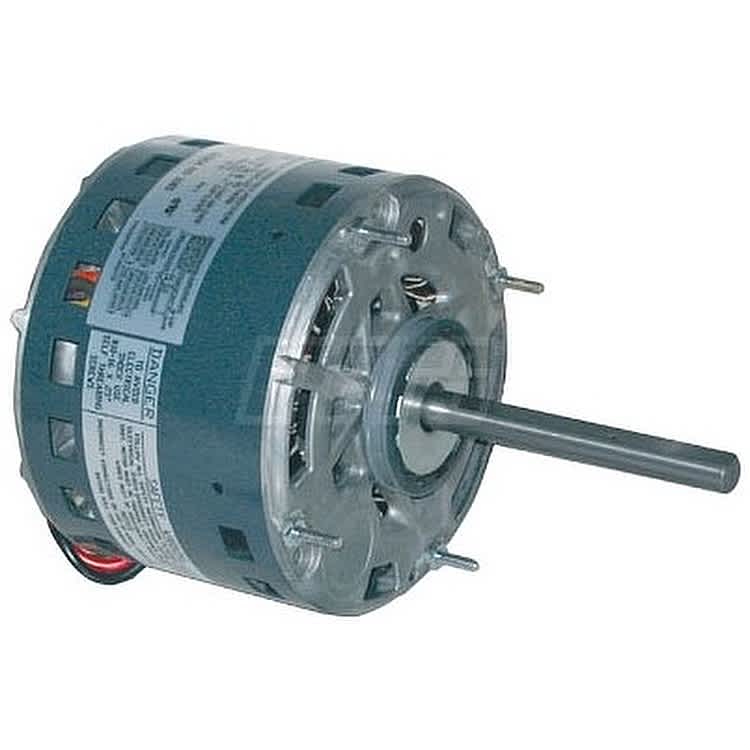

Trane D1036 MOTOR 1/3 HP 1075 RPM 208-230 Volt 48 Frame OAO ENCL

Product Description

The TRANE D1036 is an AC condenser fan motor designed for direct drive blower applications. This 1/3 HP motor operates at 1075 RPM with a voltage of 208-230 VAC and a load current of 2.7A. It features a 48 frame, OAO enclosure, and operates at 60 Hz. Suitable for use in HVAC systems and other applications requiring a reliable motor.

• 1/3 HP
• 1075 RPM
• 208-230 VOLT

Product Highlights

AC condenser fan motor, 208-230V, 1075 RPM, OAO enclosure, ideal for direct drive blower applications.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: D1036

Technical Specifications

• Bearing Type: Sleeve
• Efficiency (%): 60
• Enclosure Type: OAO
• Frame Size: 48
• Frequency Rating: 60 Hz
• HP (Decimal): 0.33
• Harness Length/Terminal Type: Lead
• Insulation Class: B
• Load Current (A): 2.7
• Motor Cap: 5 UF at 370 V
• Motor Type: AC, Condenser Fan, Direct Drive Blower
• Mounting Type: Horizontal/Through-Bolt
• Number of Phase: 1
• Number of Speeds: 3
• Protector Type: Automatic Overload
• Rotation: CCW
• Service Factor: 1
• Shaft Diameter (In): 0.5
• Shaft Length (In): 4
• Speed (RPM): 1075
• Standards: CSA,UL
• Technology: PSC
• Temperature Rating: 104 Deg. F
• Thermal Protector: True
• Voltage (VAC): 208 to 230
