Description

Product Description

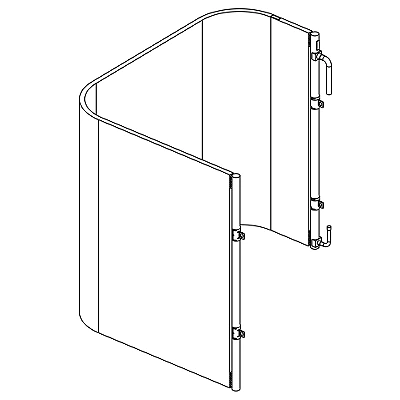

Trane COL25636 is a microchannel condenser coil in a bent configuration designed for 15–20 ton HVAC systems. The coil uses 20.6 mm tube diameter, is designated RS (right side) for connections, and is constructed with aluminum fins and tubes, copper headers, and a steel casing. It features a high fin density (23 fins per inch) and supply/return connection sizes of 3/4 in OD and 1/2 in OD, respectively.

  • Microchannel condenser coil (MCHE) bent configuration for 15–20 ton systems; 20.6 mm tube diameter and RS orientation
  • Aluminum fins and tubes, copper headers, steel casing; 23 fins per inch for enhanced heat transfer
  • Supply connection 3/4 in OD, return connection 1/2 in OD; unit weight approximately 370 lb

Product Highlights

Bent microchannel condenser coil for 15–20 ton units with 20.6 mm tubes and right-side connections

Product Information

Standard Information

  • Brand: TRANE
  • Manufacturer Part Number: COL25636
Technical Specifications
Brand
Trane
Manufacturer Part Number
COL25636
Product Type
Condenser coil
Coil Type
Microchannel (Mche)
Coil Configuration
Bent
Tube Diameter
20.6 mm
Tube Material
Aluminum
Fin Material
Aluminum
Header Material
Copper
Casing Material
Steel
Nominal Cooling Capacity
15-20 ton
Connection Orientation
Right side (RS)
Supply Connection Size (OD)
3/4 in
Return Connection Size (OD)
1/2 in
Fins Per Inch
23 FPI
Fin Height
37.83 in
Fin Length
84.03 in
Overall Coil Height
37.83 in
Overall Coil Length
41.97 in
Overall Coil Width
36.13 in
Weight
370 lb
Drawing Number
436749080001
