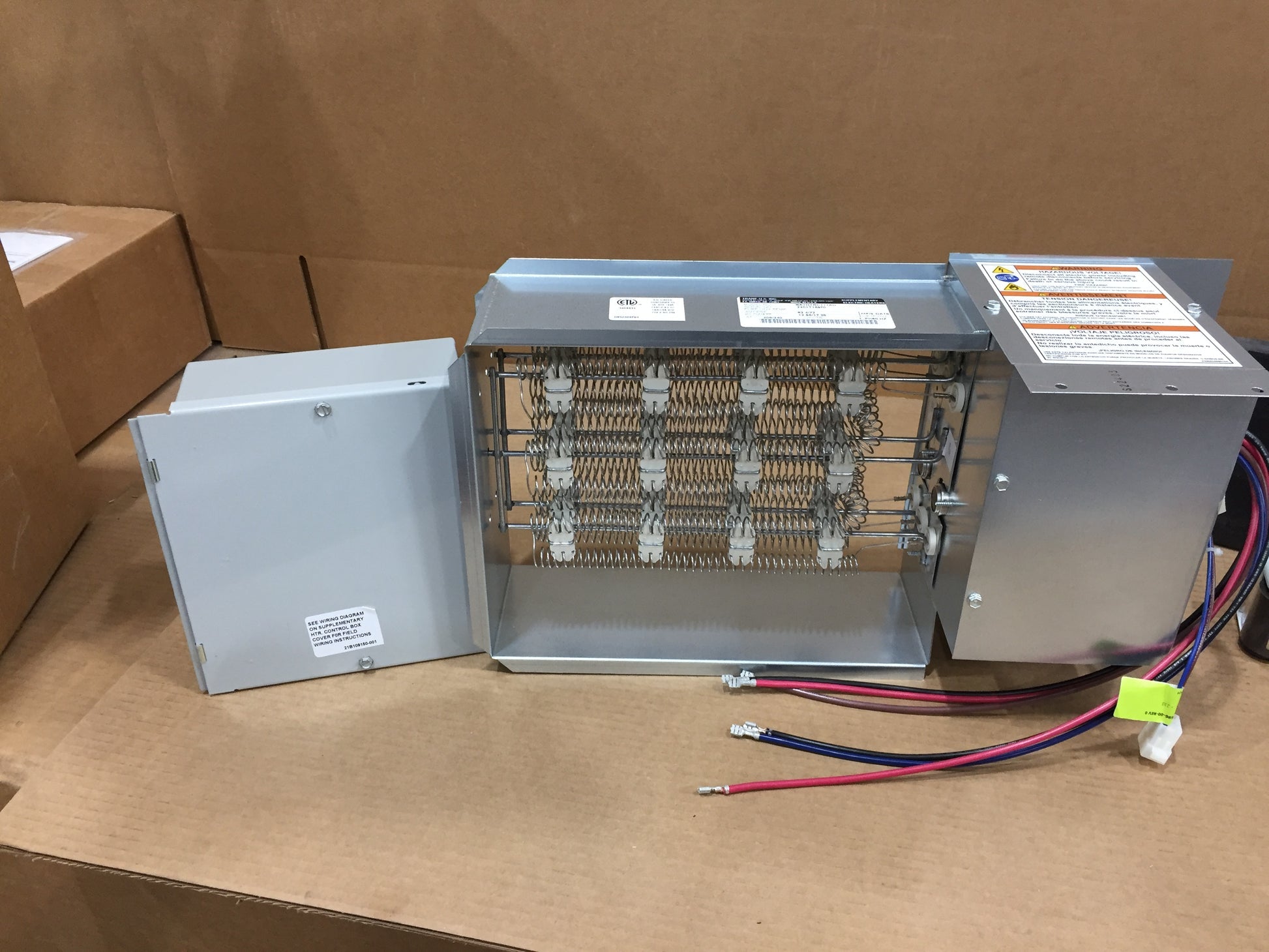

Trane BAYHTRC117A Electric Heat Kit

Product Description

The Trane BAYHTRC117A is an electric heat kit that provides supplemental heating for air handlers. This unit works as a furnace heating coil and effectively distributes warm air throughout the home when connected to an air handler. It directly connects to the power supply of the air handler and is compatible with various models of Trane RunTru air handlers.

• Provides supplemental heat to air handlers.
• Connects directly to the air handler's power supply.
• Compatible with Trane RunTru air handlers.

Product Highlights

This electric heat kit is ideal for enhancing the heating efficiency of your HVAC system.

Product Information

Standard Information

• Brand: Trane
• UPC: 850017455658

Technical Specifications

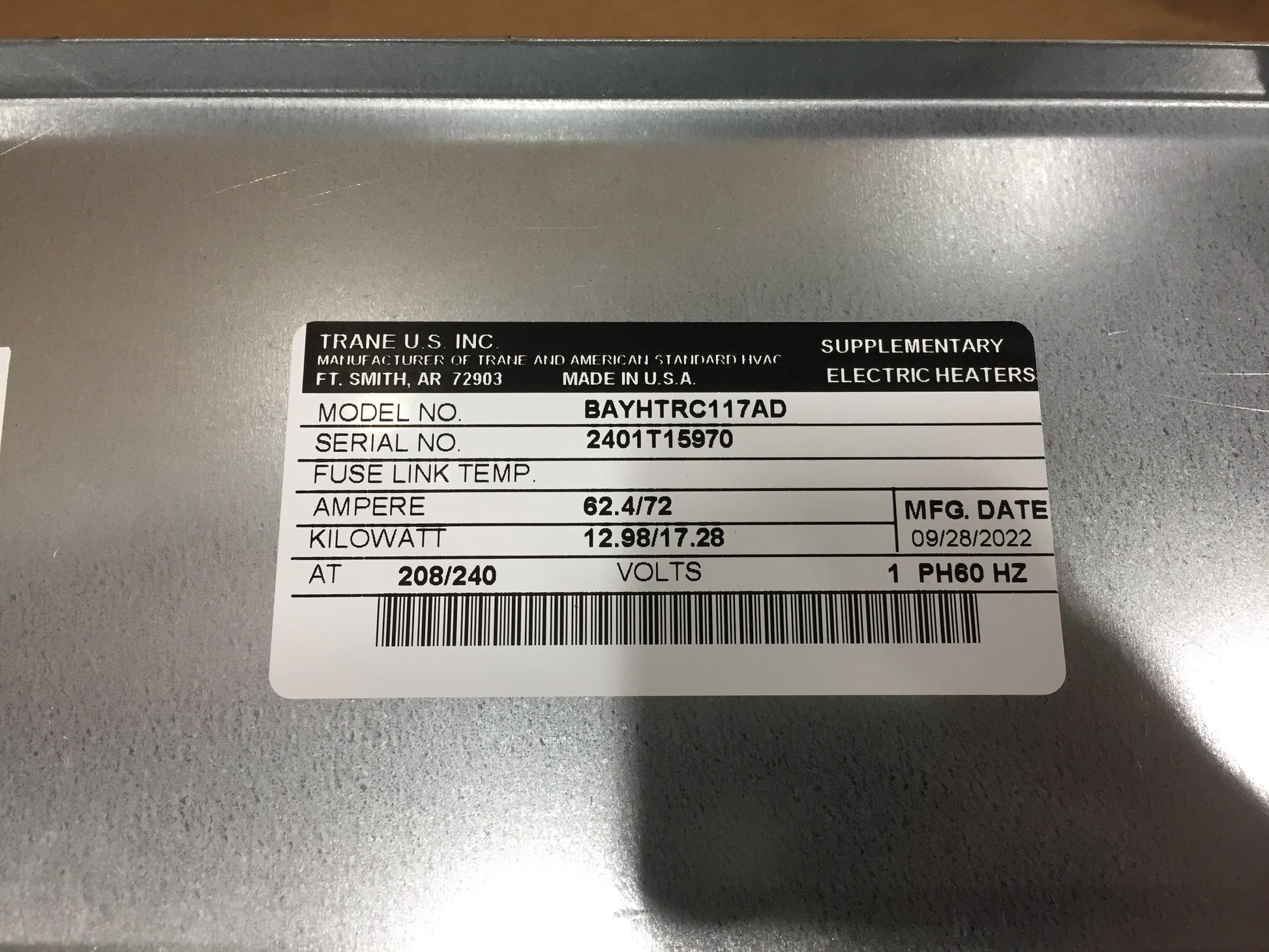

• Heater (KW): 17
• Capacity BTU: 44,300; 59,000
• For Use With: 4WHC4030-42 Heat Pumps
• MCA: 90
• Number of Heater Racks: 2

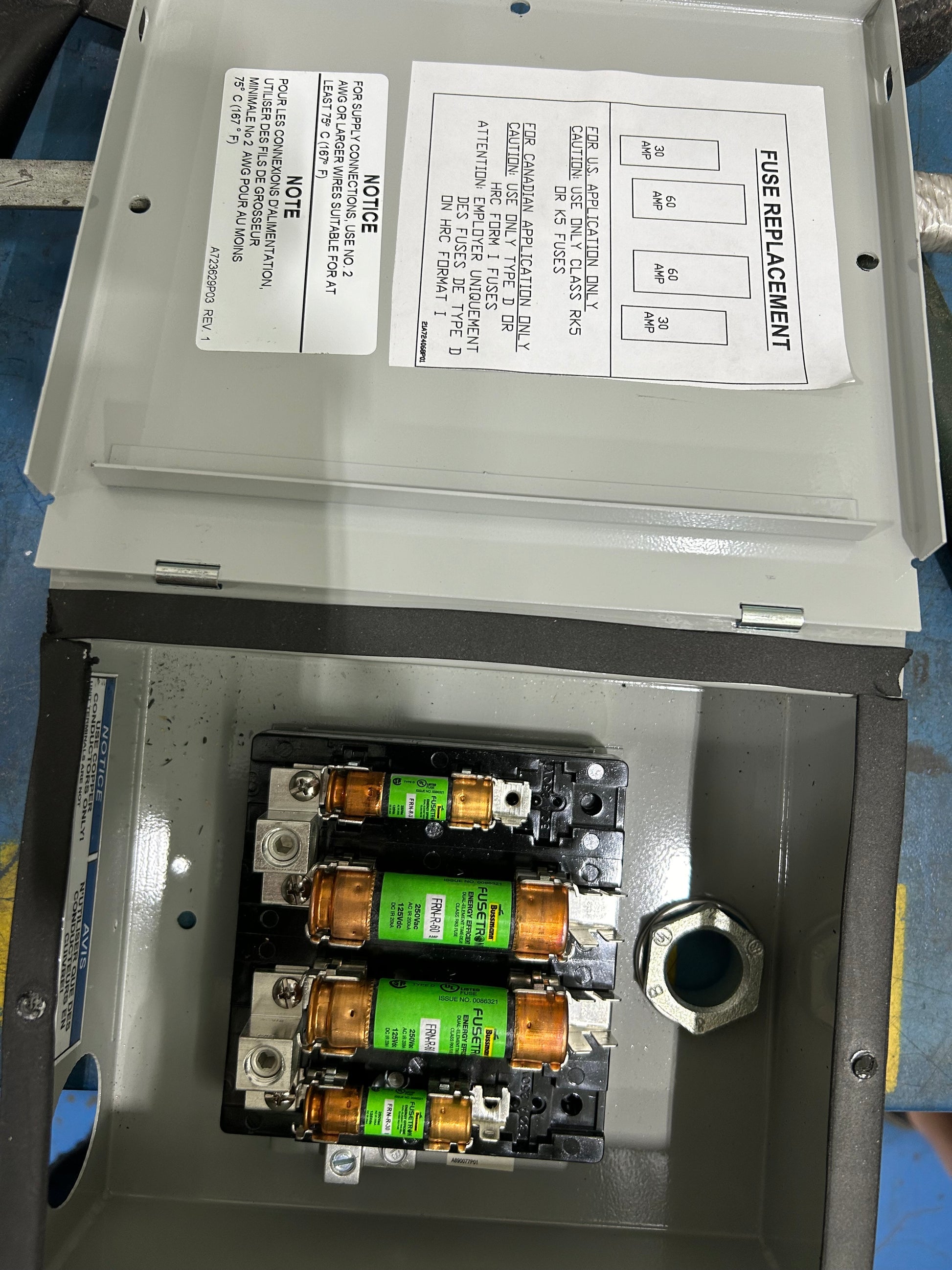

• Power - Fuse Size - MAX: 90A
• Voltage Rating: 208/240
• Circuit Phase: 1
• Maximum Hertz: 60
• Product Height: 9.1 inches
• Product Length: 20.3 inches
• Heat Strip Size: 20 kW
• Product Width: 15.1 inches
• Max Overcurrent Protection: 40 amps
• Weight: 10.5 lbs
• Primary Heating Capacity: 65,001 - 70,000 BTU
• Voltage: 240
