Trane BAYHTR1510BRK 10 kW Electric Heat Kit for RunTru Air Handlers with Circuit Breaker

Product Description

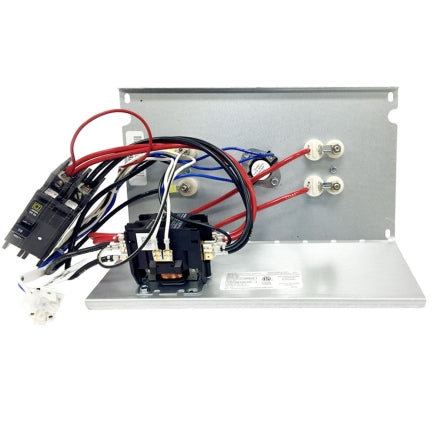

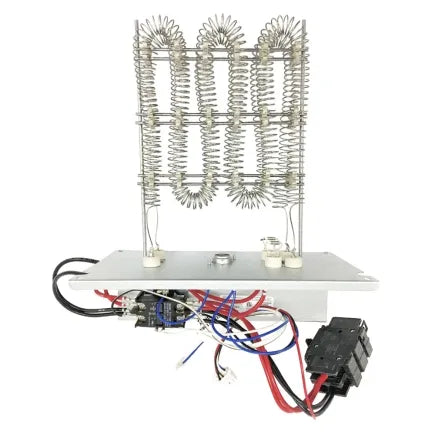

The TRANE BAYHTR1510BRK 10 kW Electric Heat Kit is designed for Trane RunTru Air Handlers, adding extra heating capability. This kit includes a circuit breaker and a single polarized plug for connecting power and control wiring. At 240 volts, it can produce up to 32,800 BTU, providing supplemental heat without needing an additional circuit.

• Compatible with Trane RunTru air handlers
• Provides supplemental heat
• Additional circuit is not required

Product Highlights

This 10kW electric heat kit enhances your Trane RunTru system, delivering efficient and reliable heating performance.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: BAYHTR1510BRK

Technical Specifications

• Model: BAYHTR1510BRKC
• UPC: 850017455641
• Product Height (in): 10
• Electrical Phase: 1-Phase
• Product Length (in): 21.5
• Heat Strip Size: 10 kW
• Product Width (in): 15.5
• Max Overcurrent Protection: 40 amps
• Primary Heating Capacity: 30,001 - 35,000 BTU
• Voltage: 240 V
• Brand: Trane
• Collection: BAYHTR15
• Phase: Single Phase
• Frequency: 60 Hz
• Kilowatt: 7.2 – 9.6 kW ≈ 10 kW
