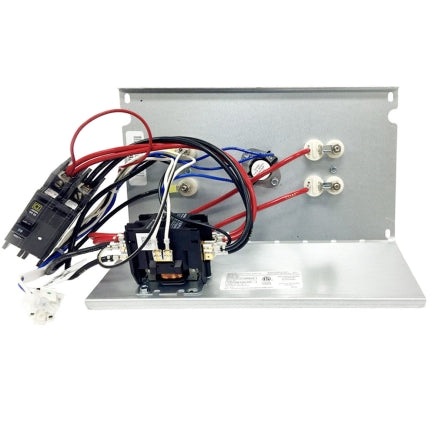

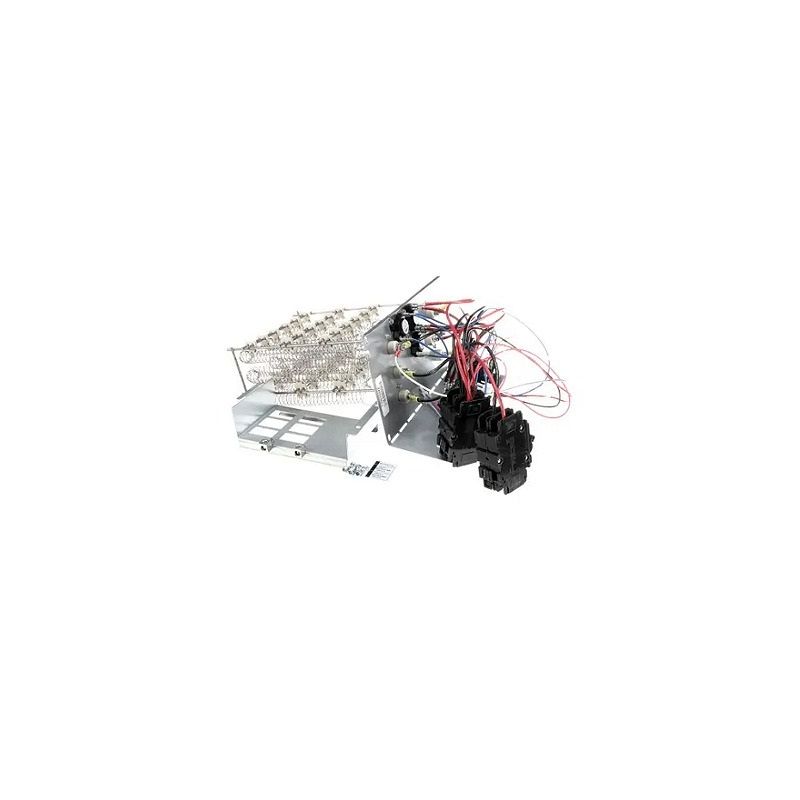

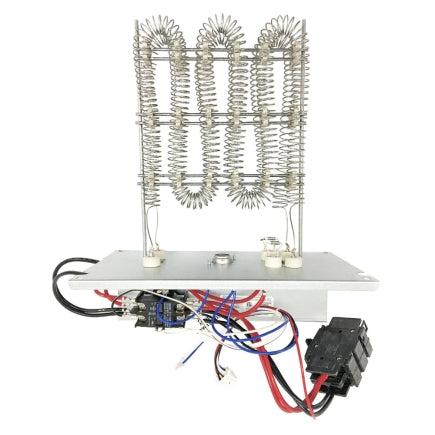

Trane BAYHTR1508BRK 8 kW 26,200 BTU Electric Heat Kit

Product Description

The Trane BAYHTR1508BRK electric heat kit pairs with your air handler to provide supplemental heat. This 8 kW electric heat kit includes a circuit breaker and uses a single polarized plug for connection. Designed for RunTru by Trane air handlers, it can be used in various configurations and has a 26,200 BTU capacity.

• Pairs with your air handler to provide extra heat
• No additional circuit needed
• Includes a circuit breaker

Product Highlights

Provides supplemental heat for Trane RunTru air handlers with a circuit breaker and single plug connection.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: BAYHTR1508BRK

Technical Specifications

• SKU: BAYHTR1508BRKC
• Brand/Manufacturer: Trane
• Heating BTU: 26,200
• Electric Heat: 8 Kilowatts
• Electrical: 208/240v 1 Phase 60Hz
• Phase: Single Phase
• Actual Length/Depth: 20.3
• Model: BAYHTR1508BRK
• UPC: 850017455634
• Product Height (in): 10
• Electrical Phase: 1-Phase
• Product Length (in): 21.5
• Heat Strip Size: 8 kW
• Product Width (in): 15.5
• Max Overcurrent Protection: 30 amps
• Primary Heating Capacity: 25,001 - 30,000 BTU
• Voltage: 240
• Collection: BAYHTR15
• Frequency: 60 Hz
• Kilowatt: 5.76-7.68 kW ≈ 8 kW
