Trane BAYEABC15LG3BA Electric Heater Kit 15 kW Replacement MPN

Product Description

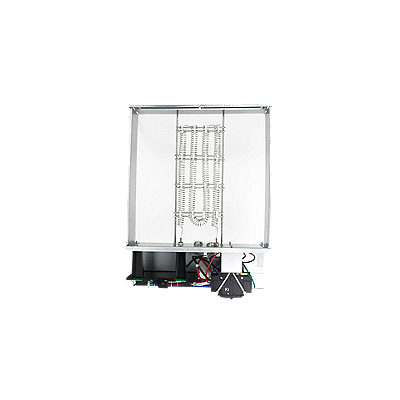

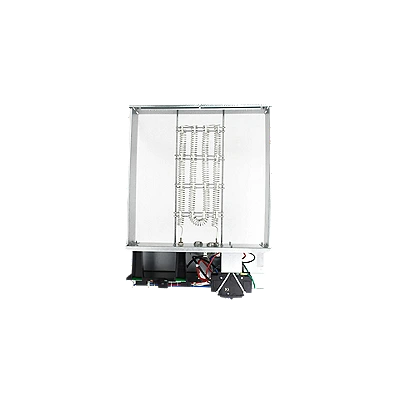

The Trane BAYEABC15LG3BA is an electric heater kit specifically made for multi-position air handlers. This heater provides supplemental heat with a capacity of forty-nine thousand two hundred BTU at fourteen point four kW (240V AC) or thirty-six thousand nine hundred BTU at ten point eight kW (208V AC). It is built with three heater racks and requires a lug electrical connection. This unit operates within a voltage range of two hundred eight to two hundred forty volts AC.

• Heater assembly with a fifteen kW capacity.
• Designed for multi-position air handlers.
• Requires a two hundred eight to two hundred forty volts AC three-phase power supply.

Product Highlights

Ideal for enhancing heating efficiency in compatible air handler systems.

Product Information

Standard Information

• Brand: Trane
• Manufacturer Part Number: BAYEABC15LG3BA

Technical Specifications

• Power Source: Electric
• Product Type: Electric Heater
• Capacity BTU: 49,200 at 14.4 kW 240V AC, 36,900 at 10.8 kW 208V AC
• Current Rating: 34.6A at 208 V AC, 40A at 240 V AC
• Electrical Connection: Lug
• For Use With: Multi-Position Air Handlers
• Phase: Three Phase
• Number of Heater Racks: 3
• Voltage Rating: 208 to 240V AC
• Power: 15 kW
