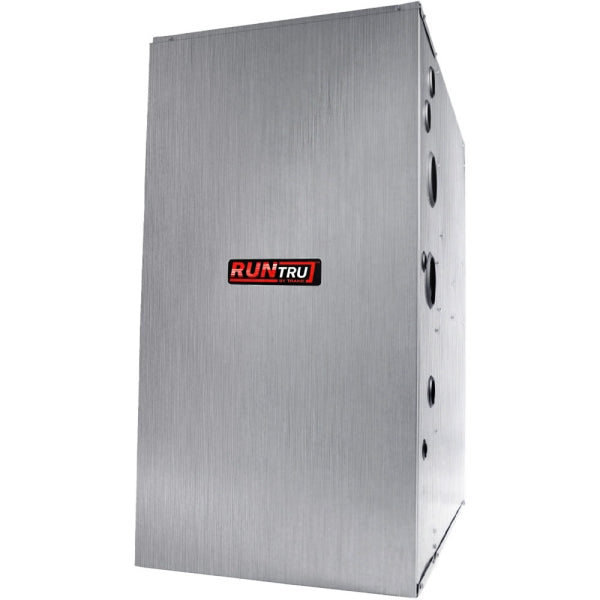

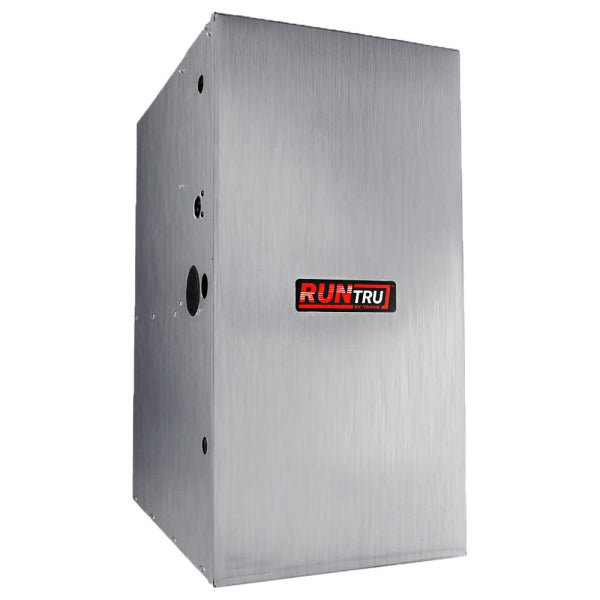

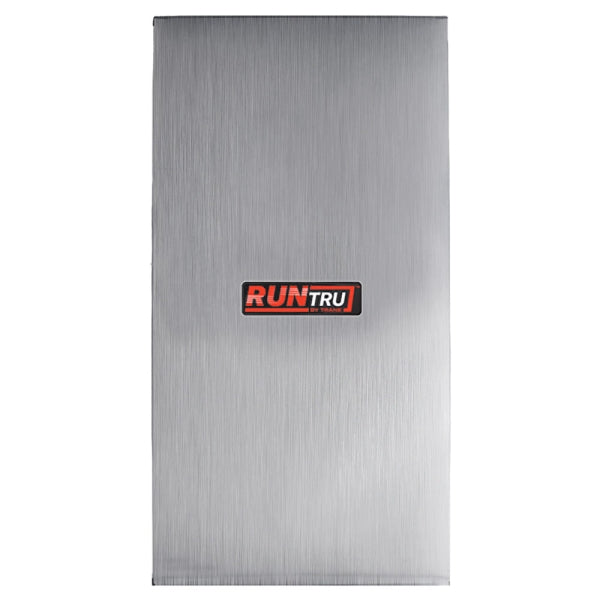

Trane A952V120DU5SB Gas Furnace 120000 Btu/h 96% Afue Two Stage Variable Speed Upflow Horizontal

Product Description

The Trane A952V120DU5SB is a two-stage, variable speed, condensing gas furnace rated at 120,000 BTU/h input and 96% AFUE. It is designed for residential heating applications in upflow or convertible horizontal installations. The variable speed ECM blower motor adjusts airflow continuously to match system demand, improving comfort and reducing energy use compared to single-speed alternatives. Two-stage heating allows the unit to run at a reduced first-stage capacity under moderate load conditions, reserving full second-stage output for the coldest days. Licensed HVAC technicians install and commission this furnace as part of a split or packaged residential system.

The A952V120DU5SB installs in upflow orientation and converts to horizontal left or horizontal right configurations, making it adaptable to a range of residential mechanical room and attic layouts. The 24.5-inch wide cabinet fits standard D-size furnace openings. It operates on 24-volt control wiring and delivers a nominal airflow of 2,000 CFM, suiting it for larger residential applications in the 2,000 to 3,000 square foot range. First-stage input capacity is 78,000 BTU/h, with full second-stage input at 120,000 BTU/h. The unit accepts both natural gas and propane fuel and carries ENERGY STAR certification.

Key Features

• 96% AFUE condensing efficiency with ENERGY STAR certification
• Two-stage gas valve reduces fuel consumption during moderate heating demand
• Variable speed ECM blower motor for quiet, efficient airflow management
• Upflow installation with field-convertible horizontal right or horizontal left orientation
• 24-volt control interface compatible with standard residential thermostat wiring
• Compatible with natural gas and propane fuel sources

Compatibility

Designed as an OEM-spec residential condensing gas furnace for upflow and horizontal installations; compatible with standard D-size cabinet openings measuring 24.5 inches wide. Specific system or coil compatibility should be verified against Trane equipment selection guides prior to installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with the National Fuel Gas Code (ANSI Z223.1 / NFPA 54), applicable local codes, and the manufacturer installation, operation, and maintenance manual. Shut off gas supply and disconnect electrical power before servicing or connecting any components. Condensate drain lines must be properly pitched and routed to an approved drain to prevent blockage or freeze-up. Venting must use approved direct-vent or non-direct-vent materials as specified in the installation documentation for the selected venting configuration.

Technical Specifications

• Input Capacity (2nd Stage): 120,000 BTU/h
• Input Capacity (1st Stage): 78,000 BTU/h
• AFUE Efficiency: 96%
• Number of Stages: 2
• Motor Type: Variable Speed ECM
• Nominal Airflow: 2,000 CFM
• Control Voltage: 24 volts
• Cabinet Width: 24.5 inches
• Cabinet Depth: 28.75 inches
• Cabinet Height: 34 inches
• Configuration: Upflow / Horizontal Left / Horizontal Right
• Fuel Type: Natural Gas, Propane Gas
• Certification: ENERGY STAR

Standard Information

• Brand: Trane
• Manufacturer Part Number: A952V120DU5SB
