Trane A952V100CU5SB Gas Furnace 100000 Btu 96% Afue Variable Speed 2 Stage Upflow Horizontal

Product Description

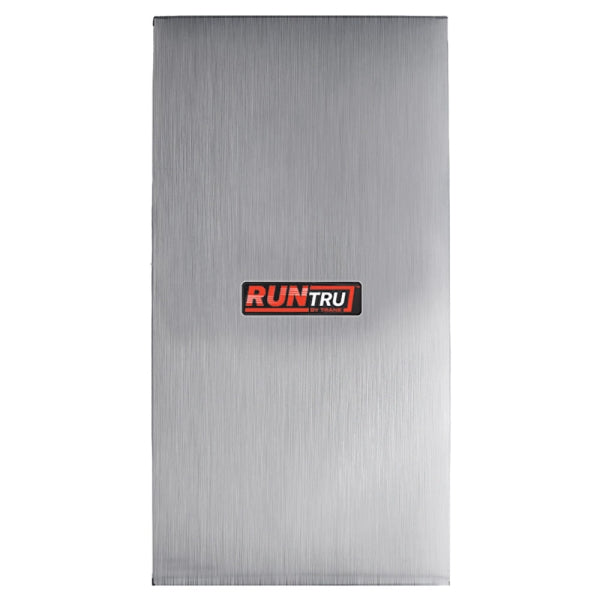

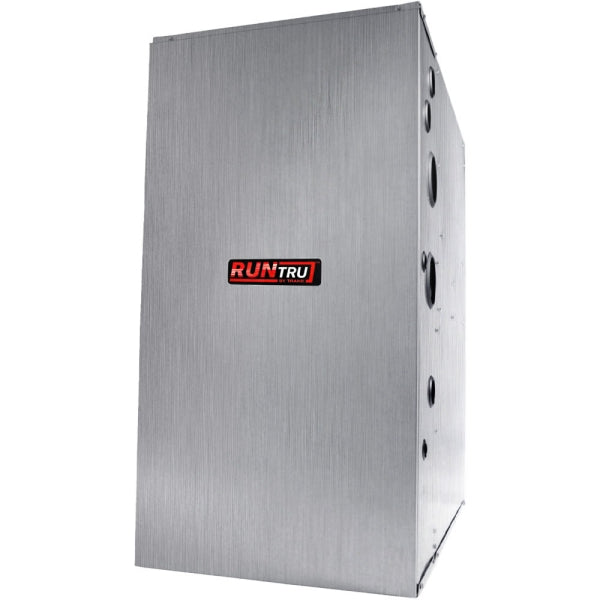

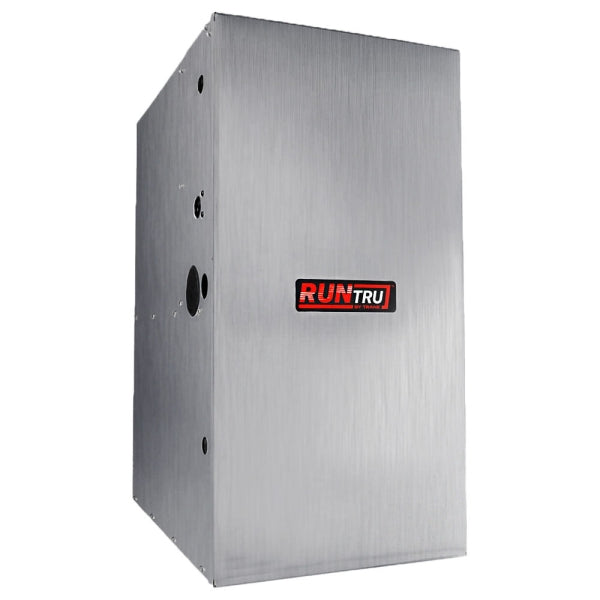

The Trane A952V100CU5SB is a 2-stage, variable speed, condensing natural gas furnace rated at 100,000 BTU input and 96% AFUE. It is part of the RunTru by Trane RT Series and is designed for upflow, horizontal left, and horizontal right installations. The variable speed ECM blower motor adjusts airflow continuously to maintain consistent temperatures and reduce energy consumption at the air distribution level. Nominal airflow capacity is 2,000 CFM. The 24-volt control system is compatible with standard thermostat wiring. Licensed HVAC technicians install this unit in residential forced-air heating systems.

The A952V100CU5SB is suited for residential applications where a high-efficiency, multi-stage gas furnace is required. Its upflow and horizontal orientation flexibility makes it a practical fit for basement, closet, utility room, and attic installations. The 2-stage burner allows the furnace to run at a reduced capacity during milder outdoor conditions, reducing short-cycling and improving comfort consistency. The 21-inch wide cabinet fits standard residential equipment spaces. This unit is intended for direct-vent or non-direct-vent configurations depending on the installation design.

Key Features

• 100,000 BTU input with 96% AFUE efficiency rating
• 2-stage burner operation reduces short-cycling and improves temperature consistency
• Variable speed ECM blower motor with 2,000 CFM nominal airflow
• Upflow, horizontal left, and horizontal right installation orientations supported
• 21-inch wide cabinet fits standard residential equipment clearances
• Compatible with direct-vent and non-direct-vent venting configurations
• 24-volt control board for integration with standard thermostat systems

Compatibility

The A952V100CU5SB is designed for use in residential forced-air gas heating systems requiring an upflow or horizontal condensing furnace with a 21-inch cabinet width. Specific system compatibility and matched coil or air handler pairings should be confirmed using Trane equipment selection documentation prior to installation.

Installation Notes

Installation must be performed by a licensed HVAC contractor in accordance with the National Fuel Gas Code (NFPA 54 / ANSI Z223.1) and all applicable local codes. Shut off gas supply and disconnect electrical power before servicing or replacing any furnace components. Verify vent termination clearances and combustion air requirements before completing the installation. Refer to the manufacturer installation, operation, and maintenance manual for detailed venting tables, airflow configuration, and wiring diagrams specific to this model.

Technical Specifications

• Heating Input Capacity: 100,000 BTU/h
• AFUE: 96%
• Stages: 2-stage
• Blower Motor Type: Variable Speed ECM
• Nominal Airflow: 2,000 CFM
• Control Voltage: 24 volts
• Cabinet Width: 21 inches
• Cabinet Depth: 28.75 inches
• Cabinet Height: 34 inches
• Fuel Type: Natural Gas
• Installation Orientation: Upflow, Horizontal Left, Horizontal Right
• Venting: Direct Vent or Non-Direct Vent

Standard Information

• Brand: Trane
• Manufacturer Part Number: A952V100CU5SB
