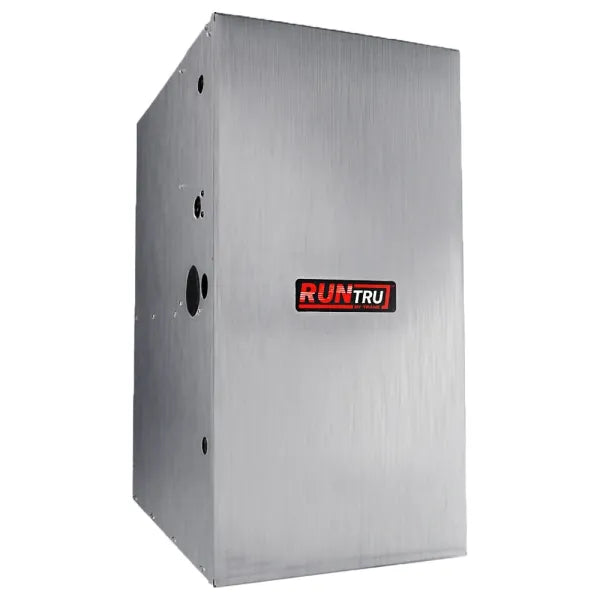

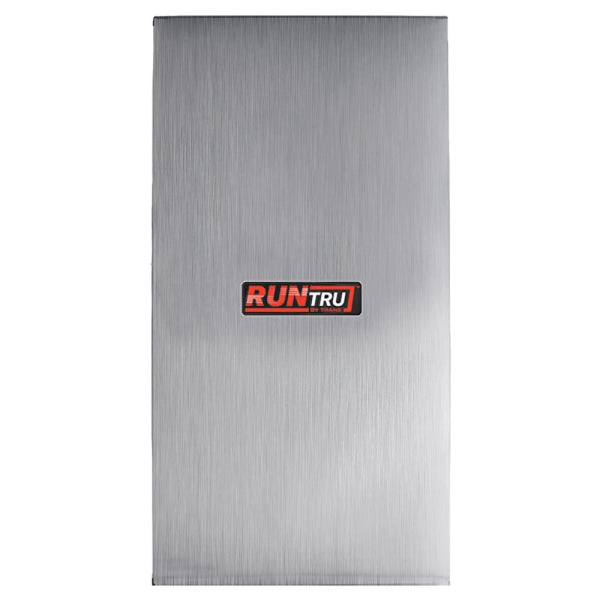

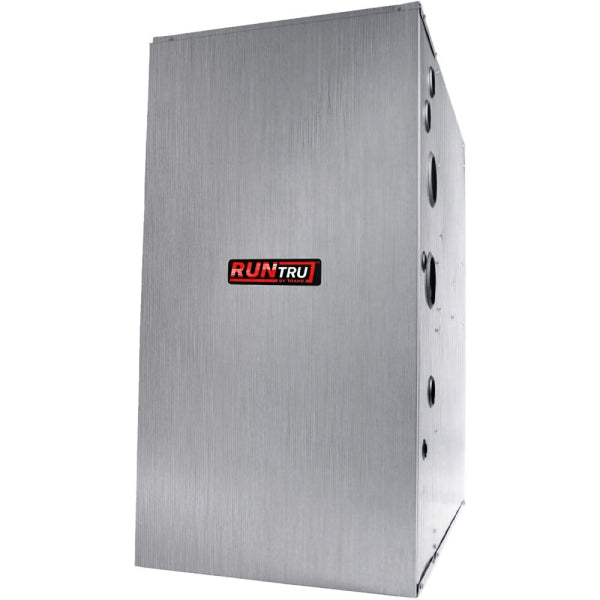

Trane A952V060BU4SB Two Stage Variable Speed Gas Furnace 60000 Btu/h 96% Afue Upflow Horizontal

Product Description

The Trane A952V060BU4SB is a two-stage, variable speed, condensing natural gas furnace rated at 60,000 BTU/h input and 96% AFUE. It is designed for upflow, horizontal left, and horizontal right installations in residential forced-air heating systems. The unit uses a variable speed draft inducer motor and an integrated furnace control board operating on 24-volt low-voltage control wiring. With a nominal airflow capacity of 1,600 CFM and a cabinet width of 17.5 inches, this furnace fits industry-standard coil and air handler configurations. Licensed HVAC technicians install and commission this equipment in new construction and retrofit applications.

This furnace is suited for residential upflow and horizontal applications where a compact 17.5-inch cabinet width is required. The two-stage burner operation allows the system to run at a lower firing rate during moderate heating demand, reducing short-cycling and improving comfort. The variable speed blower motor adjusts airflow to match system conditions, which also supports integrated air conditioning operation when paired with a compatible cooling coil and condensing unit. The unit is configured for direct vent or non-direct vent installation depending on site conditions and local code requirements.

Key Features

• 96% AFUE condensing efficiency reduces fuel consumption compared to standard-efficiency units
• Two-stage gas valve lowers firing rate during mild conditions to reduce temperature swings
• Variable speed blower delivers 1,600 nominal CFM and supports multi-speed airflow profiles
• 17.5-inch cabinet width is compatible with industry-standard evaporator coils and accessories
• Upflow, horizontal left, and horizontal right orientation support flexible installation configurations
• 24-volt control circuit is compatible with standard residential thermostats and zoning systems
• Air-tight cabinet design meets 1% or less air leakage per ASHRAE 193

Compatibility

Designed for use in residential upflow and horizontal forced-air systems with a 17.5-inch cabinet footprint. Compatible with industry-standard evaporator coils sized for the 17.5-inch cabinet width. Suitable for direct vent or non-direct vent venting configurations per installation manual requirements.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with the manufacturer installation, operation, and maintenance manual and all applicable local mechanical and fuel gas codes, including the IFGC. Shut off gas supply and disconnect electrical power before any service or installation work. Verify venting configuration, gas line sizing, and condensate drainage routing before startup. Do not operate the furnace without verifying proper airflow, static pressure, and control wiring connections.

Technical Specifications

• Input Capacity: 60,000 BTU/h
• AFUE: 96%
• Stages: 2
• Blower Type: Variable Speed
• Nominal Airflow: 1,600 CFM
• Control Voltage: 24 volts
• Cabinet Width: 17.5 inches
• Cabinet Depth: 28.75 inches
• Cabinet Height: 34 inches
• Airflow Orientation: Upflow, Horizontal Left, Horizontal Right
• Fuel Type: Natural Gas
• Venting: Direct Vent or Non-Direct Vent

Standard Information

• Brand: Trane
• Manufacturer Part Number: A952V060BU4SB
