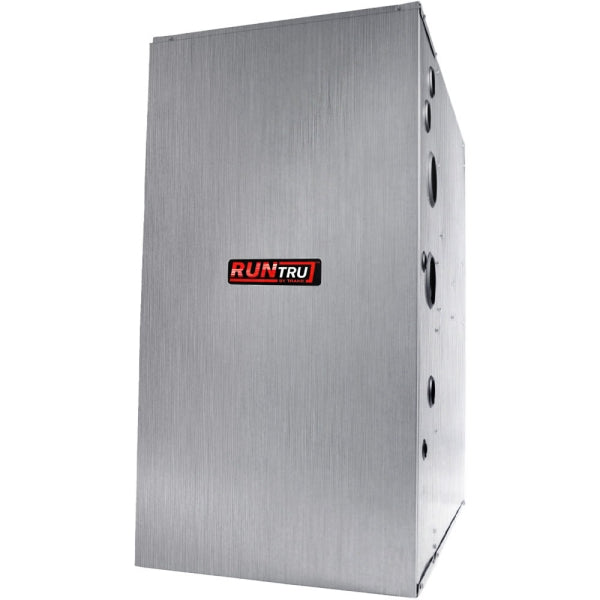

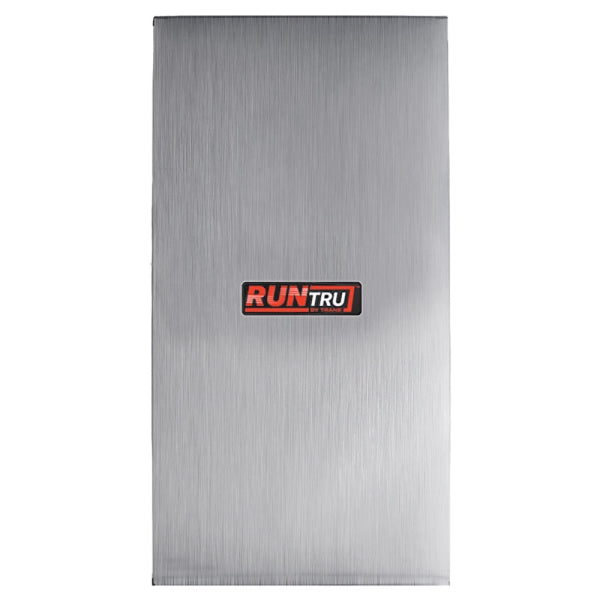

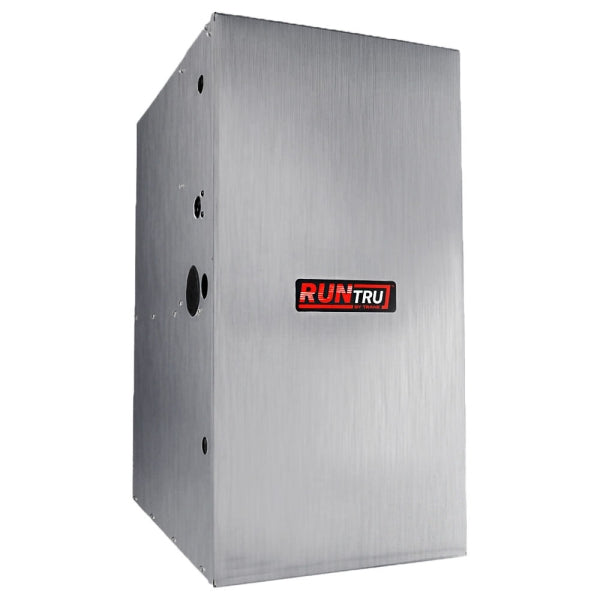

Trane A951X060BU4SA Gas Furnace 60000 Btu 96% Afue Multi Speed Upflow Horizontal 17.5 Inch Cabinet

Product Description

The Trane A951X060BU4SA is a single-stage, direct-vent condensing gas furnace rated at 60,000 BTU input and 96% AFUE, delivering approximately 57,000 BTU of usable heat output. Part of the RunTru by Trane A951X series, it features an ECM multi-speed blower motor with up to nine selectable speed taps, allowing airflow to be matched to the load. The 17.5-inch cabinet is configured for upflow or convertible horizontal-right and horizontal-left installations. Licensed HVAC technicians install and commission this equipment in residential forced-air heating applications.

The A951X060BU4SA is designed for residential upflow and horizontal installations in standard forced-air duct systems. The 17.5-inch cabinet width is an industry-standard dimension compatible with common coil and accessory configurations. The furnace ships as a standalone heating unit and is commonly paired with a split-system air conditioner or heat pump — including configurations such as the A4AC3036D1 system package noted in available product documentation. The open vestibule design provides 34 inches of vertical clearance for component access during service.

Key Features

• 96% AFUE single-stage condensing operation for high-efficiency residential heating
• ECM blower motor with nine speed taps for flexible airflow configuration
• Upflow cabinet convertible to horizontal-right or horizontal-left orientation
• Integrated furnace control with 7-segment LED display, diagnostic codes, and last-six-error memory storage
• Air-tight cabinet construction with 1.4% or less air leakage per ASHRAE 193
• 17.5-inch cabinet width compatible with industry-standard coils and accessories
• External static pressure setup with airflow options down to 290 CFM per ton

Compatibility

Designed for upflow and horizontal installations in residential forced-air systems. Compatible with industry-standard coil and accessory configurations sized for 17.5-inch cabinet widths. The A951X060BU4SA has been paired in documented system configurations with the A4AC3036D1 condenser and 4MXCB004AC6HCB air handler components. Note that part number A951X060BU4SAB represents a superseded variant of this model per Trane Supply records.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installer guide (88-A951X001-1D-EN). Shut off all gas supply and disconnect electrical power at the breaker before beginning any service or installation work. The integrated furnace control low-voltage terminal strip and line-voltage connections must be wired to local code requirements; refer to the manufacturer wiring diagram for terminal assignments. Verify venting configuration — direct or non-direct vent — meets applicable combustion air and flue requirements before startup.

Technical Specifications

• Heating Input Capacity: 60,000 BTU/h
• Heating Output Capacity: 57,000 BTU/h
• AFUE: 96%
• Motor Type: ECM
• Number of Motor Speeds: 9
• Phases: 1
• Installation Orientation: Upflow, Convertible Horizontal Right, Convertible Horizontal Left
• Cabinet Width: 17.5 inches
• Cabinet Depth: approximately 28 inches
• Open Vestibule Height: 34 inches
• Minimum Airflow: 290 CFM per ton
• Air Leakage: 1.4% or less per ASHRAE 193
• Venting: Direct Vent or Non-Direct Vent capable
• Stages: Single Stage

Standard Information

• Brand: Trane
• Manufacturer Part Number: A951X060BU4SA
