Trane A801X080CM5SC Single Stage Gas Furnace 80000 Btu/h 80% Afue Multi Position Upflow Downflow Horizontal

Product Description

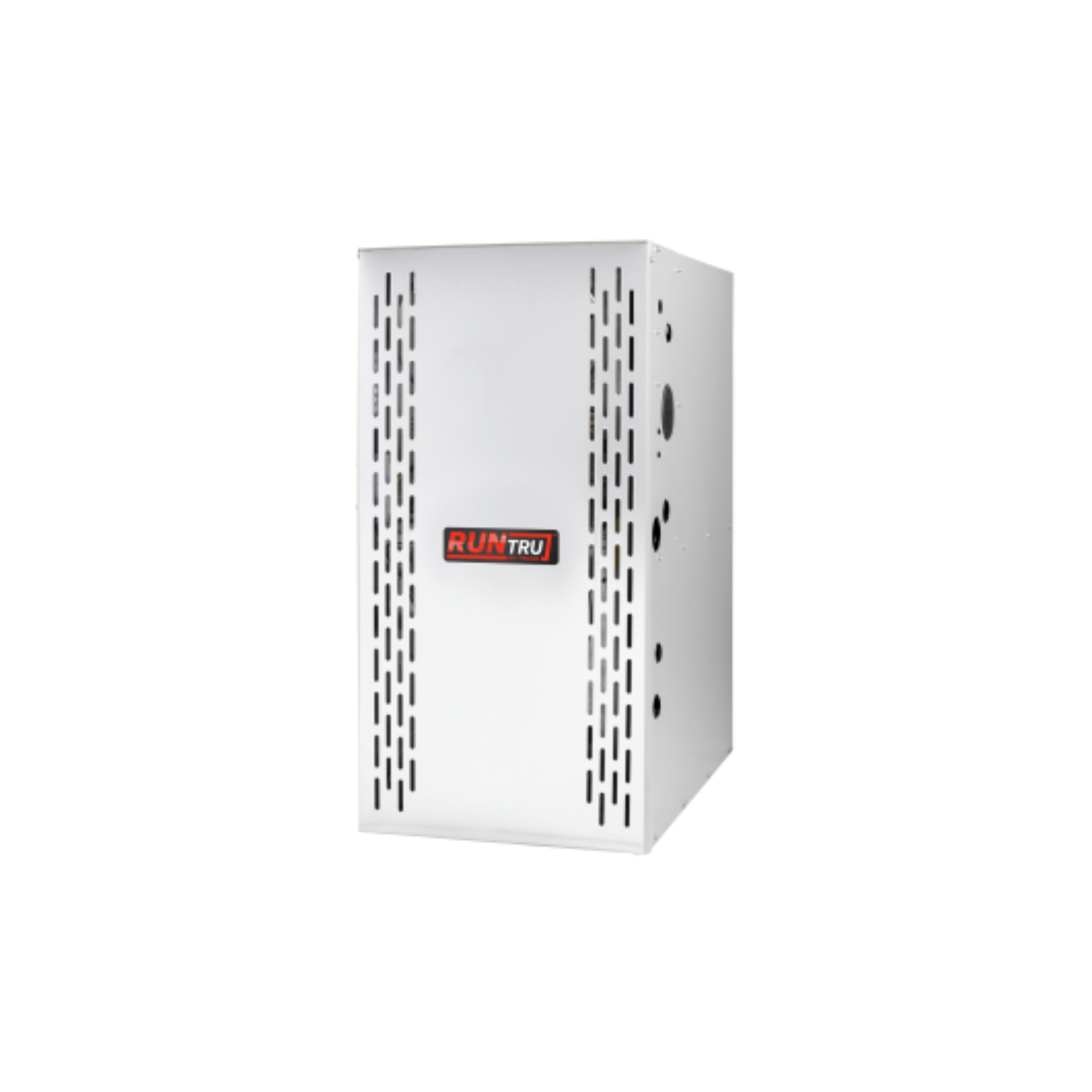

The Trane A801X080CM5SC is a single-stage, induced draft gas furnace rated at 80,000 BTU/h input and 64,700 BTU/h output, operating at 80% AFUE. Part of the RunTru by Trane product line, this furnace is designed for residential heating applications where reliable, mid-efficiency performance is required. A 9-speed constant torque blower motor delivers up to 2,000 CFM and adapts automatically between heating and cooling airflow demands. The integrated furnace control board features a digital status display, last-six-error memory, and all Molex connections for straightforward diagnostics and service. Licensed HVAC technicians install and commission this unit.

The A801X080CM5SC is a multi-position furnace approved for upflow, downflow, horizontal left, and horizontal right installations, making it well suited for a range of residential applications including basements, closets, attics, and crawlspace platforms. The cabinet width is 21 inches, an industry-standard dimension that simplifies coil and accessory pairing. The open vestibule design provides a full 34 inches of clearance for ease of installation and service access. The cabinet meets ASHRAE 193 air-tightness requirements at 1.4% or less air leakage, reducing uncontrolled airflow losses in the distribution system.

Key Features

• 80,000 BTU/h input and 64,700 BTU/h output at 80% AFUE for mid-efficiency residential heating
• 9-speed constant torque blower motor rated at 1 hp with up to 2,000 CFM capacity for heating and cooling airflow
• Multi-position installation: upflow, downflow, horizontal left, and horizontal right
• Integrated furnace control with digital display, diagnostic readout, and last-six-error log storage
• All Molex electrical connections throughout — no spade terminals — for faster, more reliable wiring
• Open vestibule design with 34 inches of vertical clearance for ease of service
• Cabinet air-tightness at 1.4% or less leakage per ASHRAE 193; compatible with industry-standard coils and accessories

Compatibility

The A801X080CM5SC uses an industry-standard 21-inch cabinet width and is compatible with industry-standard evaporator coils and accessories. It is designed as an OEM-style residential gas furnace for use with matched RunTru by Trane split system components. Verify coil and air handler compatibility through the manufacturer sizing guidelines before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with the manufacturer installation manual, local mechanical codes, and the current edition of the International Fuel Gas Code (IFGC). Shut off gas supply and disconnect electrical power before servicing or replacing any components. If the furnace is installed in a basement, excavated area, or confined space, consult the gas supplier regarding installation of a gas-detecting warning device. Verify that venting configuration, clearances, and gas line sizing meet all applicable local code requirements before startup.

Technical Specifications

• Input Heating Capacity: 80,000 BTU/h
• Output Heating Capacity: 64,700 BTU/h
• AFUE Efficiency: 80%
• Blower Motor: 9-speed constant torque, 1 hp
• Maximum Airflow: 2,000 CFM
• Voltage: 120 volts
• Amperage: 14.085 amps
• Cabinet Width: 21 inches
• Cabinet Depth: approximately 28 inches
• Cabinet Air Leakage: 1.4% or less per ASHRAE 193
• Installation Positions: Upflow, Downflow, Horizontal Left, Horizontal Right
• Staging: Single stage
• Draft Type: Induced draft

Standard Information

• Brand: Trane
• Manufacturer Part Number: A801X080CM5SC
