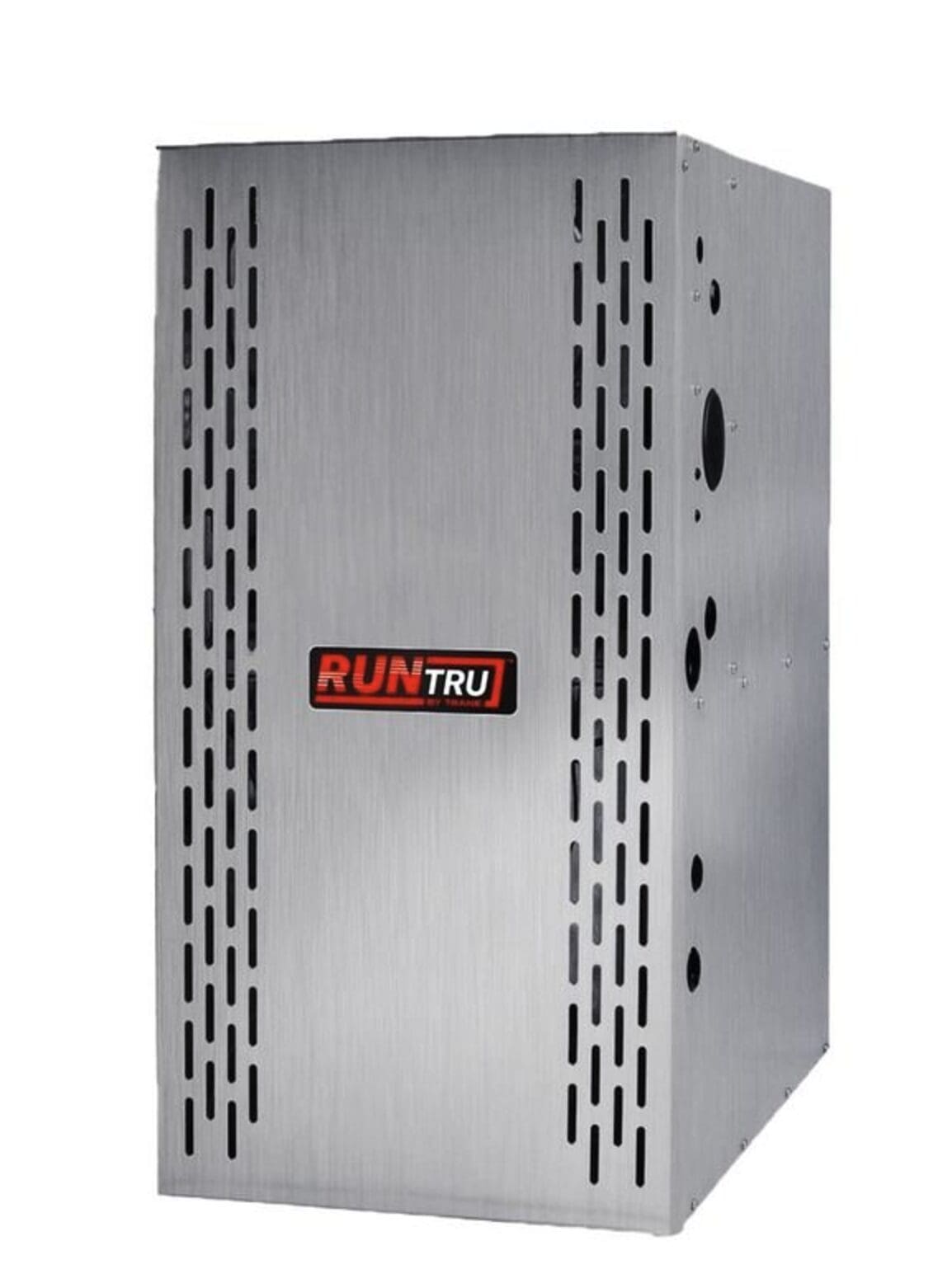

Trane A801X080BM4SD Single Stage Gas Furnace 80000 Btu 80% Afue Multi-positional

Product Description

The Trane A801X080BM4SD is a single-stage, induced-draft gas furnace rated at 80,000 BTU input capacity and 80% AFUE efficiency. Part of the RunTru by Trane RT Series, this unit is built for residential forced-air heating systems where straightforward, reliable performance is the priority. The cabinet measures 17.5 inches wide and 28.75 inches deep, making it well-suited for standard residential installations. It operates on a 120/1/60 electrical supply with 24-volt low-voltage control and uses a high-efficiency motor with multi-speed capability. A licensed HVAC technician is the appropriate installer for this equipment.

The A801X080BM4SD is designed for multi-positional installation, meaning it can be configured for upflow, downflow, horizontal left, or horizontal right airflow depending on the application. This flexibility makes it a practical choice for residential new-construction installs and equipment replacements in a variety of mechanical room layouts, including basement, closet, attic, and crawlspace installations. The 4-way installation capability reduces the need for multiple SKUs across different job types.

Key Features

• 80,000 BTU input capacity with 80% AFUE efficiency rating
• Single-stage heating operation with multi-speed blower motor
• Multi-positional design supports upflow, downflow, and horizontal left or right configurations
• 17.5-inch cabinet width fits standard residential applications
• 24-volt low-voltage control circuit for compatibility with standard thermostat wiring
• Induced-draft combustion system for reliable venting performance

Compatibility

The A801X080BM4SD has been listed as a component in matched split systems alongside the A4AC3024D1 condenser and 4MXCB004AC6HCB air handler coil. It is designed as an OEM-style replacement or new-installation furnace for residential gas-fired forced-air systems requiring an 80,000 BTU single-stage furnace in a 17.5-inch cabinet.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with the manufacturer installation, operation, and maintenance manual and all applicable local and national codes, including the International Fuel Gas Code (IFGC). Shut off the gas supply and disconnect electrical power before beginning any connection or service work. If installed in a basement, excavated area, or confined space, a gas-detecting warning device is strongly recommended per manufacturer guidance. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other gas appliance.

Technical Specifications

• Input Capacity: 80,000 BTU/h
• AFUE: 80%
• Stages: Single stage
• Blower Motor: Multi-speed, high-efficiency motor
• Electrical Supply: 120/1/60
• Control Voltage: 24 volts
• Cabinet Width: 17.5 inches
• Cabinet Depth: 28.75 inches
• Installation Positions: 4-way (upflow, downflow, horizontal left, horizontal right)
• Venting: Induced draft
• Fuel Type: Natural gas

Standard Information

• Brand: Trane
• Manufacturer Part Number: A801X080BM4SD
