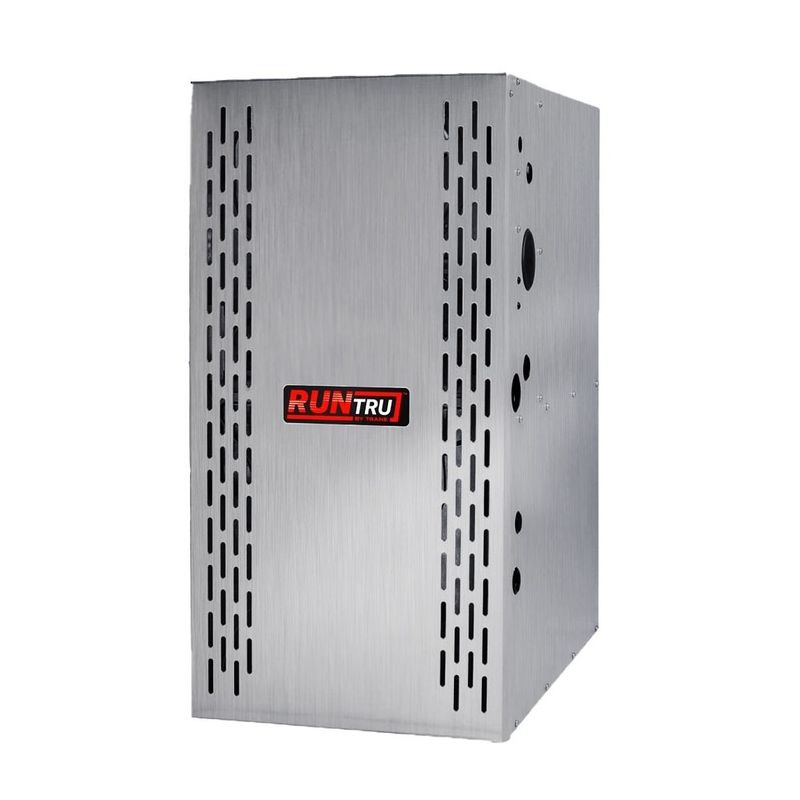

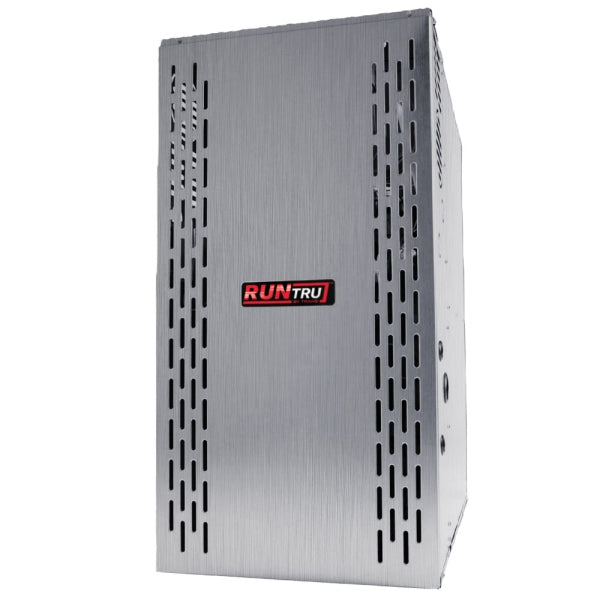

Trane A801X060BM4SD Gas Furnace 60000 Btu/h 80% Afue Multi-speed Multi-positional

Product Description

The Trane A801X060BM4SD is a single-stage, multi-speed, non-condensing natural gas furnace rated at 60,000 BTU/h input and 80% AFUE, delivering approximately 48,000 BTU/h of usable heat output. Part of the RunTru by Trane RT Series, it is designed for residential forced-air heating applications where straightforward, dependable performance is the priority. The unit features an induced-draft combustion system and a multi-speed blower motor, providing consistent airflow across a range of static pressure conditions. Licensed HVAC technicians install and commission this furnace in accordance with local mechanical codes and manufacturer guidelines.

The A801X060BM4SD is a multi-positional furnace suitable for upflow, downflow, horizontal left, and horizontal right installations, making it adaptable to a variety of residential duct configurations. It fits applications where cabinet width is a constraint, with a nominal 17.5-inch wide cabinet. The unit carries a California NOx emissions-compliant variant designation (models with a T in the 12th digit meet less-than-40 ng/J NOx requirements), making it appropriate for installations in emissions-regulated jurisdictions when the correct variant is specified.

Key Features

• 60,000 BTU/h input with 48,000 BTU/h usable heat output at 80% AFUE
• Single-stage gas valve for straightforward operation and reliable ignition sequencing
• Multi-speed blower motor accommodates varying external static pressure requirements
• Four-way multi-positional cabinet supports upflow, downflow, and horizontal left or right orientation
• Induced-draft combustion design compatible with standard B-vent or direct-vent flue configurations per installation manual
• Narrow 17.5-inch cabinet width suits retrofit applications with limited mechanical room footprint

Compatibility

Designed as an OEM-style replacement and new-installation furnace within the RunTru by Trane RT Series product line for residential gas heating systems. Confirm system tonnage, airflow requirements, and local fuel type before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in compliance with the International Fuel Gas Code (IFGC), applicable local mechanical codes, and the manufacturer installation, operation, and maintenance manual. Shut off gas supply and disconnect electrical power before servicing or making connections. The furnace requires proper flue venting sized per the installation manual and must not be located in areas where gasoline or other flammable vapors are stored or used. Verify temperature rise falls within the rated range during commissioning before returning the system to service.

Technical Specifications

• Input Capacity: 60,000 BTU/h
• Output Capacity (ICS): 48,700 BTU/h
• AFUE: 80%
• Stages: Single stage
• Blower Motor Type: Multi-speed
• Temperature Rise Range: 30 to 60 degrees F
• Cabinet Width: 17.5 inches
• Cabinet Depth: 28.75 inches
• Fuel Type: Natural gas
• Combustion System: Induced draft
• Installation Positions: Upflow, downflow, horizontal left, horizontal right
• Control Voltage: 24 volts
• Series: RunTru RT Series

Standard Information

• Brand: Trane
• Manufacturer Part Number: A801X060BM4SD
