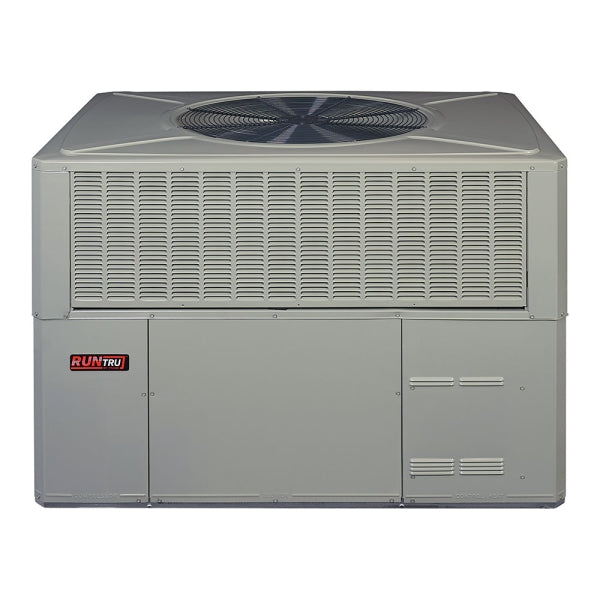

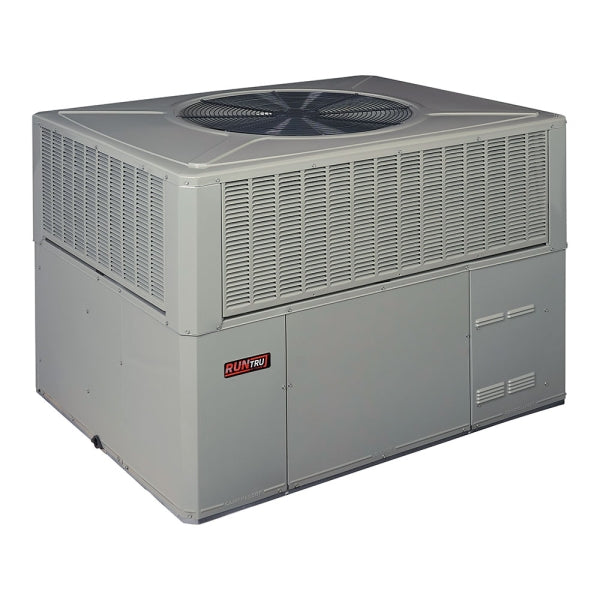

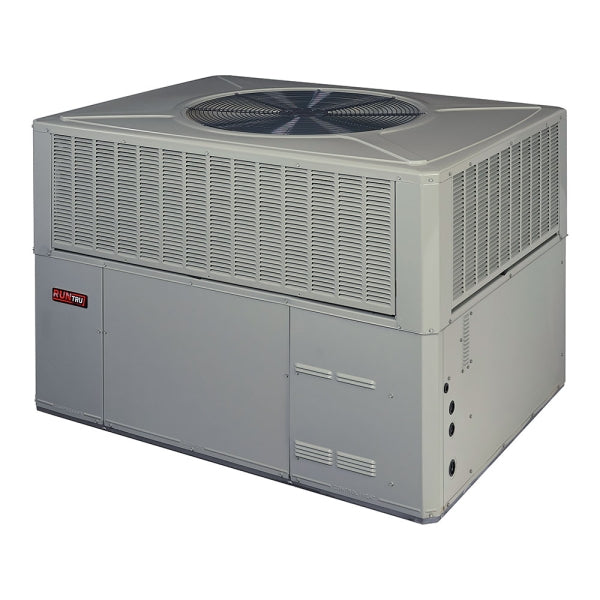

Trane A5PG3036A1070 Gas Electric Packaged Unit 3 Ton 36000 Btu 13.4 SEER2 R-454B Residential Light Commercial

Product Description

The Trane A5PG3036A1070 is a single packaged gas heating and electric cooling unit rated at 3 tons (36,000 BTU/h) of cooling capacity. It operates on R-454B refrigerant and delivers a SEER2 rating of 13.4 and an EER2 of 10.60, meeting current efficiency standards. The unit runs on 208-230 volts, single phase, 60 Hz and draws 3.12 kW of power input during cooling. For heating, it supplies up to 70,000 BTU/h input via natural gas at 81 AFUE. All mechanical components are housed in a single outdoor cabinet, eliminating the need for a separate indoor air handler. Licensed HVAC technicians install and service this type of equipment.

This packaged unit is designed for residential and light commercial applications where a self-contained rooftop or ground-level installation is required. The convertible cabinet design allows flexible duct connection configurations to suit different installation layouts. It is part of the Trane RT Series A5PG30 product family, which spans 2 to 5 ton configurations using R-454B refrigerant. Typical installations include single-story residential structures, small retail spaces, and light commercial buildings that rely on a single rooftop or pad-mounted unit for year-round heating and cooling.

Key Features

• 3-ton (36,000 BTU/h) cooling capacity with 13.4 SEER2 efficiency rating
• Natural gas heating at 70,000 BTU/h input, 81 AFUE
• R-454B refrigerant — compliant with current low-GWP transition requirements
• Single-phase 208-230 volt electrical supply, 60 Hz
• Indoor airflow rated at 1,190 CFM
• Convertible cabinet design for flexible duct connection at installation
• Sound power rating of 71.4 dB(A)

Compatibility

Designed as an OEM packaged gas-electric unit within the Trane RT Series A5PG30 family for residential and light commercial ducted systems requiring a single self-contained heating and cooling cabinet.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with applicable local mechanical codes and the manufacturer installation manual. Disconnect and lock out all electrical power and shut off the gas supply before servicing or making any connections. Ductwork connections, refrigerant handling, and gas line hookups must comply with local codes and ASHRAE and IFGC requirements. Do not operate the unit without verifying proper airflow, gas pressure, and electrical supply within rated tolerances.

Technical Specifications

• Cooling Capacity: 36,000 BTU/h
• Heating Input Capacity (1st Stage, Natural Gas): 70,000 BTU/h
• SEER2: 13.4
• EER2: 10.60
• AFUE: 81
• Voltage / Phase / Frequency: 208-230 volts / 1-phase / 60 Hz
• Cooling Power Input: 3.12 kW
• Indoor Airflow: 1,190 CFM
• Refrigerant: R-454B
• Sound Power Rating: 71.4 dB(A)
• Fuel Type: Natural Gas
• Configuration: Single Packaged Gas-Electric, Convertible

Standard Information

• Brand: Trane
• Manufacturer Part Number: A5PG3036A1070
