Trane A5PG3030A1070 Single Packaged Gas Electric Unit 2.5 Ton R-454B 70000 Btuh Heating

Product Description

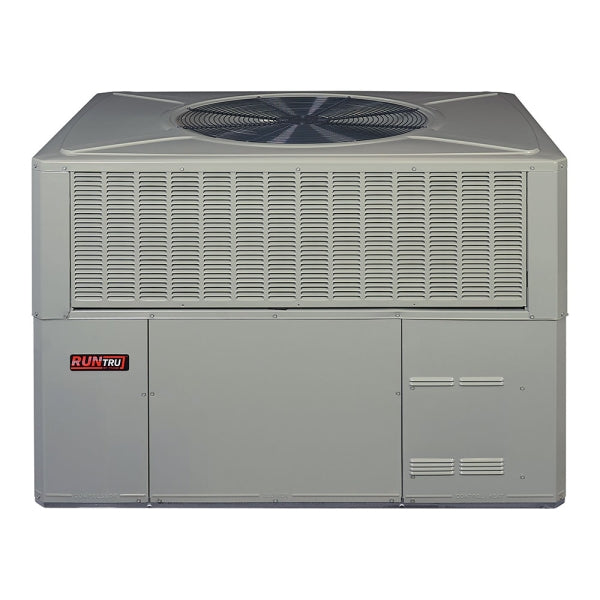

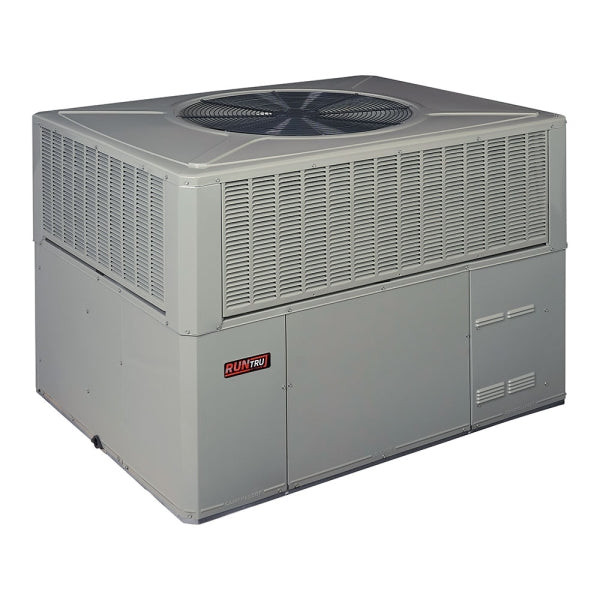

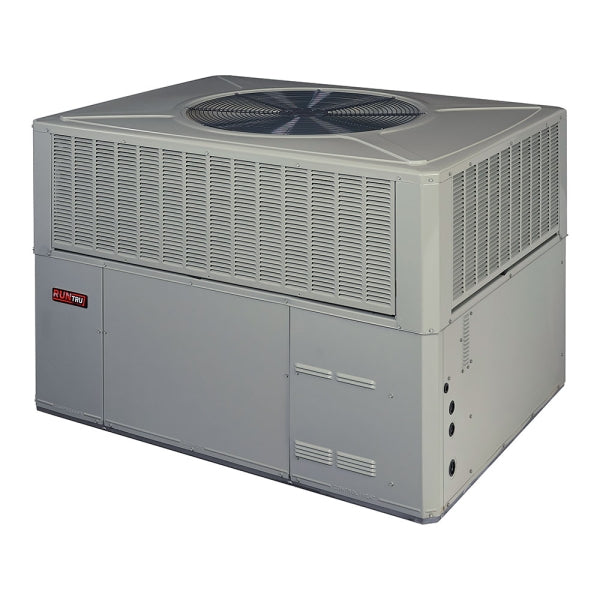

The Trane A5PG3030A1070 is a single packaged gas/electric heating and cooling unit designed for rooftop or ground-level installation in light residential and small commercial applications. The unit delivers 28,400 BTUH of cooling capacity at 2.5 tons and 70,000 BTUH first-stage gas heating input with an 81 AFUE rating. It operates on R-454B refrigerant, a lower global-warming-potential alternative to R-410A, and runs on a 208-230/1/60 electrical supply. Rated at an EER2 of 10.6 and SEER2 of 13.40, this unit meets current efficiency standards for entry-level packaged systems. Licensed HVAC technicians and mechanical contractors are the typical installing trades.

The A5PG3030A1070 is suited for residential or light commercial rooftop and ground-mount applications where a self-contained, convertible packaged system is required. It is part of the Trane A5PG3030 product family, which covers the 2 to 5 ton single packaged gas/electric convertible series. The unit is built for climates requiring both cooling and gas heating in a single cabinet, reducing the need for separate indoor equipment. The convertible configuration supports multiple duct connection orientations to fit varying installation layouts.

Key Features

• 2.5-ton cooling capacity rated at 28,400 BTUH with 920 CFM indoor airflow
• R-454B refrigerant for reduced environmental impact relative to R-410A systems
• 70,000 BTUH first-stage natural gas heating input at 81 AFUE
• EER2 of 10.6 and SEER2 of 13.40 for current-standard efficiency compliance
• Sound power rating of 70.0 dB(A) for moderate acoustic output
• Convertible cabinet design supports flexible duct connection configurations
• Single-phase 208-230 volt, 60 Hz electrical supply for standard residential and light commercial service

Compatibility

Designed as a self-contained OEM packaged gas/electric unit within the Trane A5PG3030A series, compatible with standard rooftop curb and ground-mount duct configurations typical of residential and light commercial packaged system installations. Consult the product submittal and installation documentation for specific curb adapter and duct connection compatibility.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes, the National Fuel Gas Code (NFPA 54/ANSI Z223.1), and applicable NEC requirements for the electrical connection. Shut off gas supply and disconnect electrical power before any service work on the unit. R-454B refrigerant handling requires EPA Section 608 certification and appropriate equipment rated for A2L refrigerants. Verify structural support, curb dimensions, and duct sizing before setting the unit.

Technical Specifications

• Cooling Capacity: 28,400 BTUH
• Heating Input (1st Stage, Natural Gas): 70,000 BTUH
• Tonnage: 2.5 ton
• AFUE: 81
• EER2: 10.6
• SEER2: 13.40
• Indoor Airflow: 920 CFM
• Power Input (Cooling): 2.43 kW
• Voltage: 208-230 volts
• Phase: 1
• Frequency: 60 Hz
• Refrigerant Type: R-454B
• Compressor Rotational Speed: 825 RPM
• Operating Temperature Range: 30 to 60 degrees F
• Sound Power Rating: 70.0 dB(A)

Standard Information

• Brand: Trane
• Manufacturer Part Number: A5PG3030A1070
