Trane A5PG3024A1060 Single Packaged Gas Electric Unit 2 Ton R-454B 24000 Btu Cooling 60000 Btu Heating

Product Description

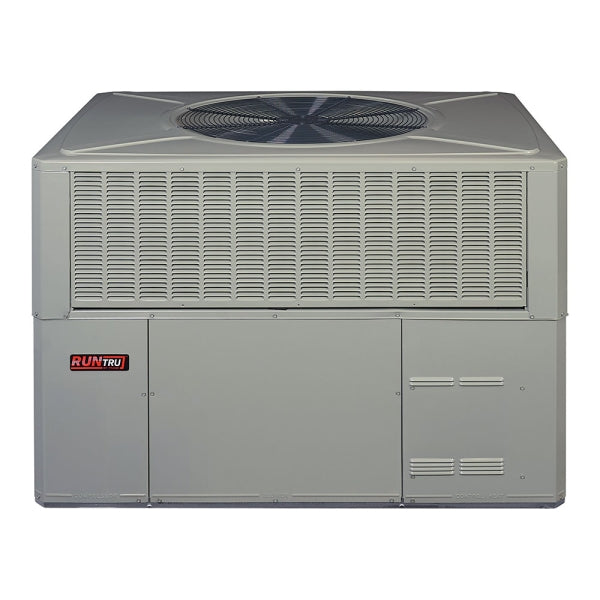

The Trane A5PG3024A1060 is a single packaged gas heating and electric cooling unit designed for light commercial and residential rooftop or ground-level installations. Operating on R-454B refrigerant, it delivers 24000 BTU/h of cooling capacity and 60000 BTU/h of gas heating input through a scroll compressor and a constant torque ECM indoor fan. The unit runs on 208-230/1/60 electrical service and uses electronic ignition for reliable heat startup. Licensed HVAC technicians install and commission this system as a self-contained, single-cabinet solution that combines the air handler, gas furnace, and condenser into one unit.

This packaged unit is intended for entry-level convertible applications in the 2 to 5 ton product family. The A5PG3024A1060 sits at the 2 ton cooling end of the lineup and is suited for small commercial spaces or residential applications where a split-system installation is not practical. The convertible design allows flexibility in discharge airflow configuration at the jobsite. It is listed alongside other models in the A5PG30 series including the A5PG3030A1070A, A5PG3036A1070A, A5PG3042A1090A, A5PG3048A1090A, and A5PG3060A1115A.

Key Features

• R-454B refrigerant compliant with current environmental regulations
• Constant torque ECM indoor fan with 4-speed direct drive for quiet, efficient airflow
• Spine-fin outdoor coil with 2 rows and 24 fins per inch for effective heat rejection
• Scroll compressor rated at 10.3 running amps and 60.2 locked-rotor amps
• Electronic ignition eliminates standing pilot and reduces gas consumption at startup
• Convertible design supports multiple discharge configurations in the field

Compatibility

The A5PG3024A1060 is part of the Trane A5PG30 single packaged gas/electric entry series covering 2 to 5 ton cooling capacities. Refer to Trane submittal document PKGR-PSD014B-EN for full system compatibility details including accessory damper options BAYDMPR101 and BAYDMPR102A.

Installation Notes

Installation must be performed by a licensed HVAC technician with qualifications covering both gas and refrigeration work. Disconnect electrical power and shut off the gas supply at the service valve before beginning any service or installation work. Follow local mechanical codes, the IFGC for gas connections, and NEC requirements for electrical hookup including proper overcurrent protection sized to the unit fuse rating. Do not operate the unit without verifying refrigerant circuit integrity and confirming gas pressure is within the range specified on the unit nameplate.

Technical Specifications

• Cooling Capacity: 24000 BTU/h
• Heating Input: 60000 BTU/h
• Refrigerant: R-454B
• Voltage / Phase / Frequency: 208-230 volts / 1 phase / 60 Hz
• Compressor Type: Scroll
• Compressor RLA / LRA: 10.3 amps / 60.2 amps
• Outdoor Fan Motor: 1/12 HP at 810 RPM
• Outdoor Fan FLA / LRA: 0.54 amps / 0.82 amps
• Outdoor Coil Type: Spine-Fin, 2 rows, 24 fins per inch
• Indoor Fan Type: Constant Torque ECM, direct drive, 4 speeds
• Indoor Fan Diameter x Width: 10.62 inches x 10.62 inches
• Fuse Rating: 25 amps
• Ignition Type: Electronic

Standard Information

• Brand: Trane
• Manufacturer Part Number: A5PG3024A1060
